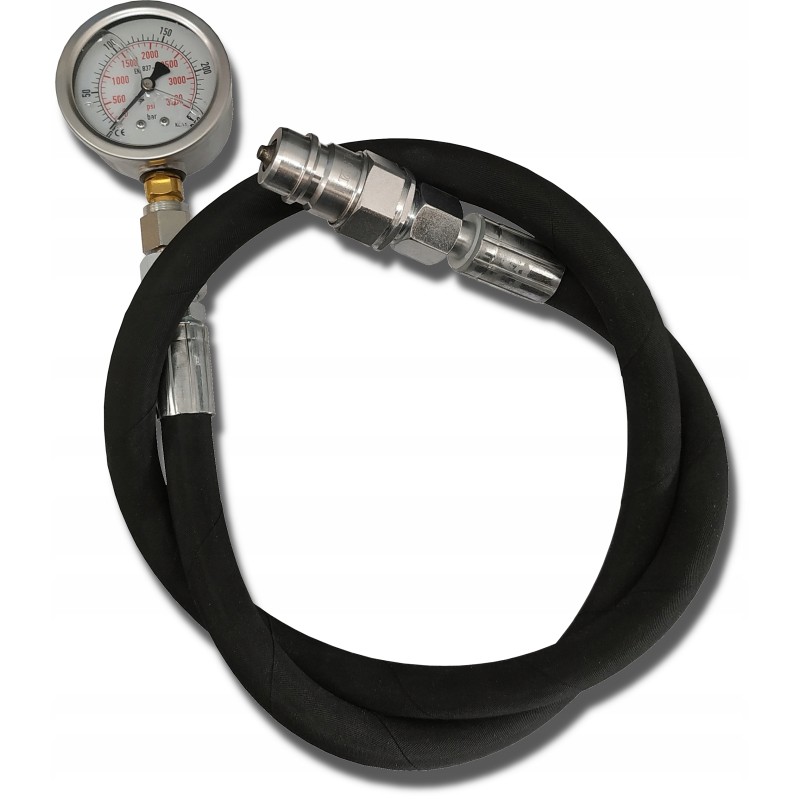

Pressure measurement kit in the hydraulic system

Set for measuring pressure in the hydraulic system [7200] A very popular Euro connector was used for connection, thanks to which you can measure the pressure in any equipment, in hydraulic systems in agriculture, horticulture, forestry or construction.

The glycerin pressure gauge is perfect for powered machines and devices hydraulically.

The manometer allows you to measure liquid pressure in a closed hydraulic system.

The set includes: Hydraulic Pressure Gauge 0-250 BAR [0312]

Manometric Connector G1/4' - M18x1.5 [1403]

Quick Coupler Plug EURO M18x1.5 [ 0162]

Hydraulic Hose 2SN-3/8' x 115cm [1539]

Straight ferrule M18x1.5 for 3/8' hose [1527]

Straight ferrule GZ M18x1.5 for 3/8' hose [1534]

2x Sleeve for Hose 3/8' 1SN/2SN [1536]

Glycerin manometer 63mm for measuring pressure: 0-250 bar, solidly made[0312]

The glycerin manometer differs from standard manometers by having an interior filled with glycerine, which secures and protects the pointer against vibrations and vibrations.

Glycerin also allows you to increase the level of measurement accuracy.

Technical data:

Pressure measurement range: 0-250 Bar

Outer diameter of the clock: 63 mm

Connection port thread [BSP]: 1/4' + G1/4' connector - M18x1 .5

Operating temperature [°C]: -10 to +50

Accuracy class: 1.6

Material:

Steel housing, glass viewer

Hydraulic hose 2SN-3/8' DN10 [1539]

Hydraulic pressure lines are the same sealing after tightening.

They are used to connect individual components of hydraulic systems, including: actuators, distributors, tanks or engines.

Thanks to its universality, it can be used in any system with a maximum oil pressure of 330 bar and a flow of up to 50 L/min.

It is intended for indoor use and outside.

Technical Specification: Number of braids: 2

Internal diameter of the passage (DN10): 10 mm

Outer diameter of the hose: 16.9 mm

Cable length: 1150 mm

Maximum pressure: 330 Bar

Maximum flow: 50L/min

The cable is flexible and resistant to weather conditions. QUICK HYDRAULIC CONNECTOR EURO PLUG THREAD 18x1.5 [0162]

They are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system.

Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. tractor.

Specification: Quick connector type: euro ISO standard

Quick connector type: plug

Thread type: short, external

Material: galvanized steel
