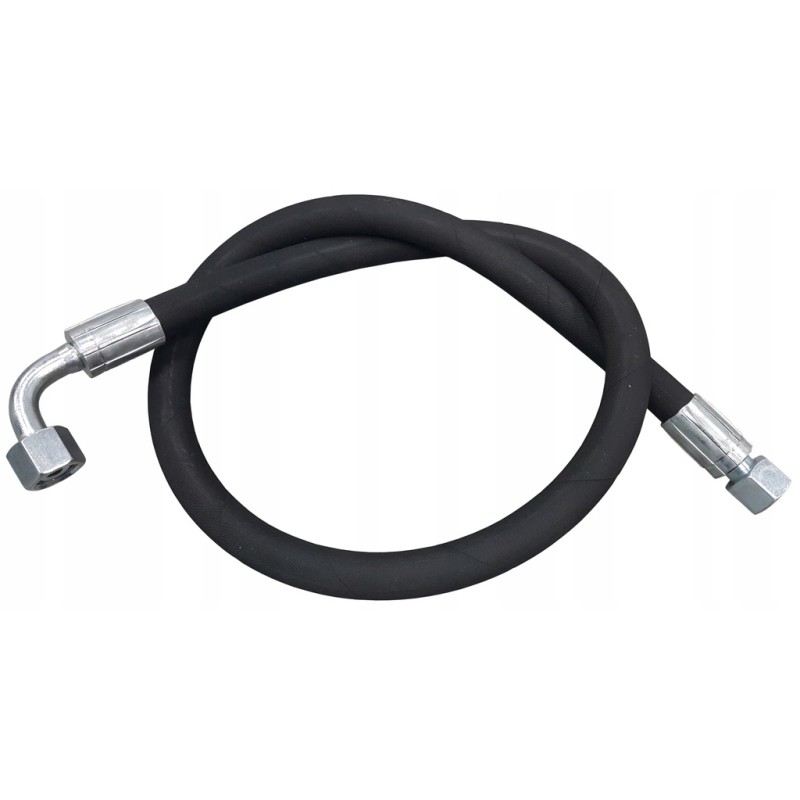

Hydraulic hose pipe dn10 18 18 ak1500 180bar

HYDRAULIC HOSE ZAKUTYP AK10/1-1500.18/18 Production:

Original Specflex hose,

Application:

Universal, pressure hydraulic hose with self-sealing clamp when tightening. It is widely used in hydraulic systems in agriculture and industry. It is used to connect basic hydraulic components, including: pumps, distributors, tanks, actuators, engines, etc.

The cable can be used in hydraulic systems with a maximum pressure of up to 180 bar and a maximum flow of up to 50L/min, in installations operating indoors and outdoors.

Technical data:

Hydraulic cable it is sealed, blown out (cleaned with pressure from the compressor), ready to be connected and operated in the system. The finished hose includes: an original, reinforced and flexible Hydrolider hose and fittings from a Polish manufacturer. All elements are resistant to weather conditions, cracking and corrosion.

Cable length with ferrules: 1500mm

Types of ferrules:

On one side, type A, straight with an M18x1.5 nut

On the other side, type K, angled 90 degrees with an M18x1.5 nut

Number of braids: single braid (1SN)

Maximum pressure: 180 Bar

Recommended flow in the system: from 1 to 50 L/min

Internal diameter of the passage: (DN10): 10 mm

Outer diameter of the hose: 17 mm

Threads and clamping cone fit all connectors and connections in our offer.

Technical data:

The hydraulic hose is crimped, blown (cleaned with pressure from the compressor), ready for connection and operation in the system. The finished hose includes: an original, reinforced and flexible Hydrolider hose and fittings from a Polish manufacturer. All elements are resistant to weather conditions, cracking and corrosion.

Cable length with ferrules: 1500mm

Types of ferrules:

On one side, type A, straight with an M18x1.5 nut

On the other side, type K, angled 90 degrees with an M18x1.5 nut

Number of braids: single braid (1SN)

Maximum pressure: 180 Bar

Recommended flow in the system: from 1 to 50 L/min

Internal diameter of the passage: (DN10): 10 mm

Outer diameter of the hose: 17 mm

Threads and clamping cone fit all connectors and connections in our offer.
