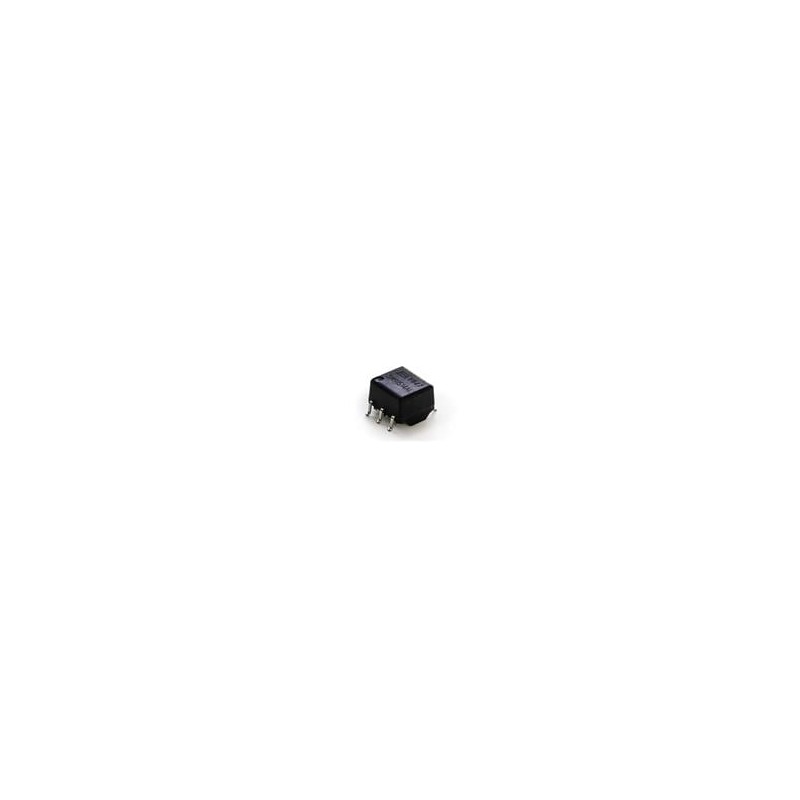

10 pcs : SM91514AL-E - Power Transformers CMC,6PIN,SGL,4.3KVDC AEC-Q200
    • 10 pcs : SM91514AL-E - Power Transformers CMC,6PIN,SGL,4.3KVDC AEC-Q200

    10 pcs : SM91514AL-E - Power Transformers CMC,6PIN,SGL,4.3KVDC AEC-Q200

    10electronicpartsUK652SM91514ALE
    BOURNS
    10 pcs : SM91514AL-E - Power Transformers CMC,6PIN,SGL,4.3KVDC AEC-Q200
    £58.25
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Battery Management System Bourns Battery Management Systems (BMS) manage the state of health (SoC) while charging and discharging battery systems. BMS components feature shunt resistors, high-voltage signals, power transformers, and shielded power inductors. Current sense resistors are AEC-Q200 qualified with a continuous current of 1000A and a low 50µΩ resistance. Bourns signal transformers include common-mode chokes for noise rejection for BMS applications. The shielded power inductors and high creepage high clearance (HCT) transformers are suitable for automotive power conversion, DC-DC converters, power supplies, and communication electronics.
    Product Details
    BOURNS
    10electronicpartsUK652SM91514ALE
    SM91514AL-E
    10 Items

    Data sheet

    Manufacturer
    BOURNS
    Width
    6.73 mm
    Height
    5.72 mm
    Length
    7.62 mm
    Series
    SM91514AL
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Product Type
    Audio & Signal Transformers
    Product Category
    Power Transformers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Bourns
    Product
    BMS Transformers
    Factory Pack Quantity Factory Pack Quantity
    4000
    Subcategory
    Transformers
    Unit Weight
    400 mg
