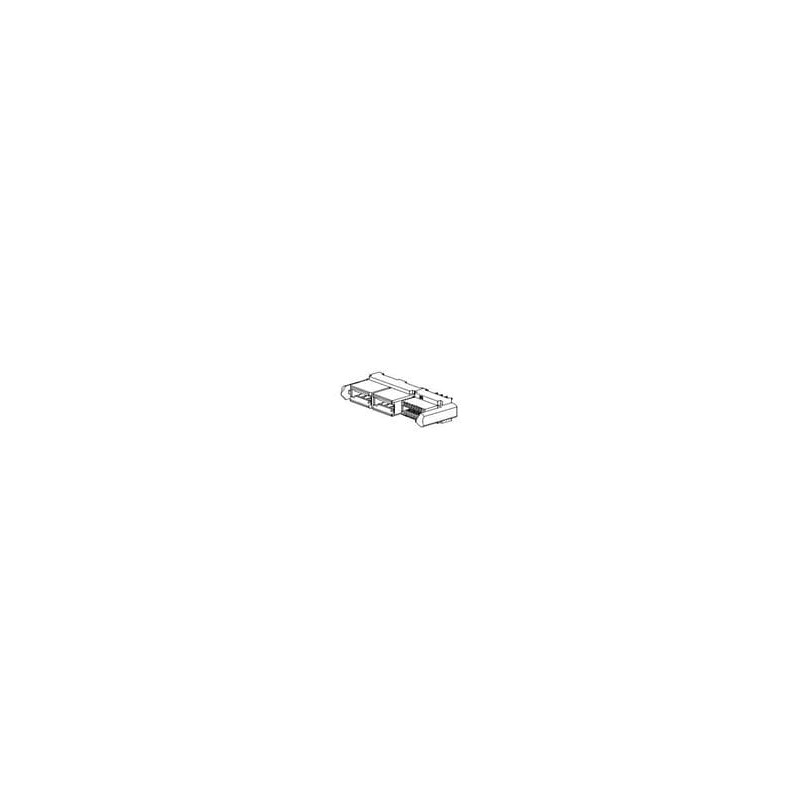

    1 pcs : 46114-4160 - Power to the Board LPH VERT. ASSY W GUI W GUIDES 4PX16S CKT
    • 1 pcs : 46114-4160 - Power to the Board LPH VERT. ASSY W GUI W GUIDES 4PX16S CKT

    1 pcs : 46114-4160 - Power to the Board LPH VERT. ASSY W GUI W GUIDES 4PX16S CKT

    electronicparts-UK/M/538-46114-4160
    MOLEX
    £30.98
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    EXTreme LPHPower Connectors Molex EXTreme LPHPower Connectors extend mounting flexibility to backplane or midplane mating applications. Designed with power blades parallel to the PC board, the EXtreme LPHPower series offers a low-profile height of 7.50mm. This low profile allows greater system airflow while taking up 53% less space than traditional connectors with the same current rating. Molex EXTreme LPHPower Connectors provide up to 127.0A per linear inch of space. The series also has two isolated power blades in each housing bay and can be mated in a right-angle, co-planar, or vertical orientation.
    Product Details
    MOLEX
    electronicparts-UK/M/538-46114-4160
    46114-4160
    10 Items

    Data sheet

    Manufacturer
    MOLEX
    Current rating
    30 A
    Contact material
    Tin
    Contact plating
    Gold
    Number of positions
    4 Power, 16 Signal
    Series
    46114
    Voltage Rating
    250 V
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Through Hole
    Housing Material
    Thermoplastic (TP)
    Product Type
    Power to the Board
    Number of Rows
    2 Row
    Contact Gender
    Socket (Female)
    Pitch
    12 mm, 1.27 mm
    Termination Style
    Press Fit
    Product Category
    Power to the Board
    Packaging
    Tray
    RoHS
    Details
    Brand
    Molex
    Factory Pack Quantity Factory Pack Quantity
    315
    Subcategory
    Power Connectors
    Tradename
    EXTreme LPHPower
    Unit Weight
    6.284 g
    Part # Aliases
    0461144160
    Mounting Angle
    Vertical
