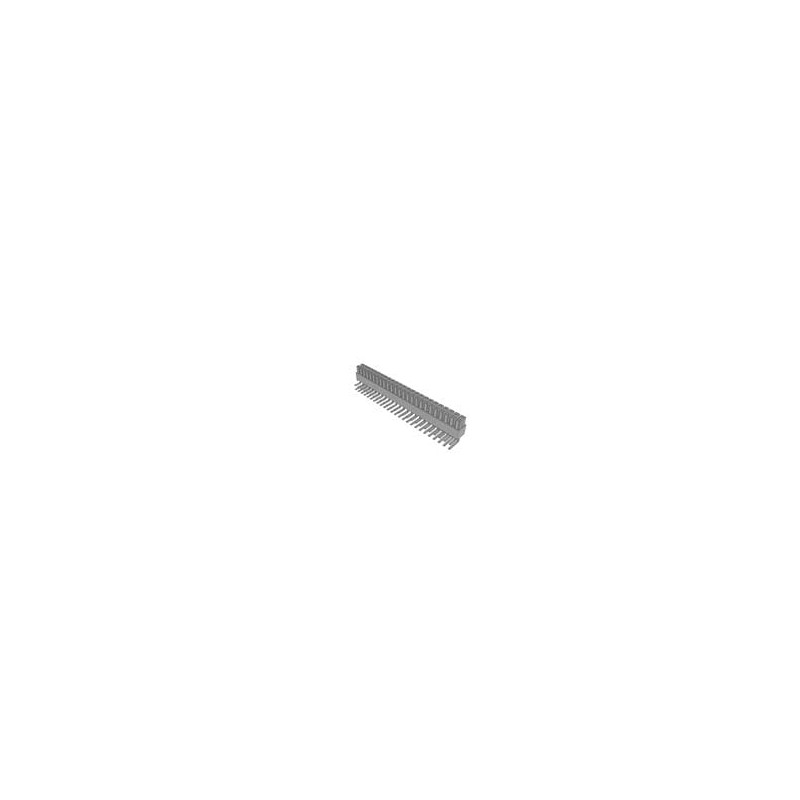

    1 pcs : IPS1-125-01-S-D-RA - Power to the Board .100' Mini Mate Isolated Power Connector Socket Strip
    • 1 pcs : IPS1-125-01-S-D-RA - Power to the Board .100' Mini Mate Isolated Power Connector Socket Strip

    1 pcs : IPS1-125-01-S-D-RA - Power to the Board .100' Mini Mate Isolated Power Connector Socket Strip

    electronicparts-UK/M/200-IPS112501SDRA
    Samtec
    £26.08
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Mini Mate® Isolated Power Connectors Samtec Mini Mate® Isolated Power Connectors are 2.54mm pitch (.100') board-to-board power socket and terminal strips with individually shrouded contacts. The shrouded contacts provide electrical and mechanical protection. An optional locking clip also boosts the ruggedness of the connectors. Samtec Mini Mate double-row connectors come in vertical through-hole, surface-mount, or right-angle through-hole configurations. These power connectors also offer a current rating of 4.8A at 95°C.
    Product Details
    Samtec
    electronicparts-UK/M/200-IPS112501SDRA
    IPS1-125-01-S-D-RA
    10 Items

    Data sheet

    Manufacturer
    Samtec
    Current rating
    5.9 A
    Contact material
    phosphor bronze
    Contact plating
    Gold
    Number of positions
    50 Position
    Series
    IPS1
    Voltage Rating
    775 VAC, 1.095 kVDC
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 55 C
    Mounting Style
    Through Hole
    Housing Material
    Liquid Crystal Polymer (LCP)
    Housing Colour
    Black
    Product Type
    Power to the Board
    Number of Rows
    2 Row
    Contact Gender
    Socket (Female)
    Pitch
    2.54 mm
    Termination Style
    Solder Pin
    Product Category
    Power to the Board
    Packaging
    Tube
    RoHS
    Details
    Brand
    Samtec
    Factory Pack Quantity Factory Pack Quantity
    9
    Subcategory
    Power Connectors
    Tradename
    Mini Mate
    Mounting Angle
    Right Angle
