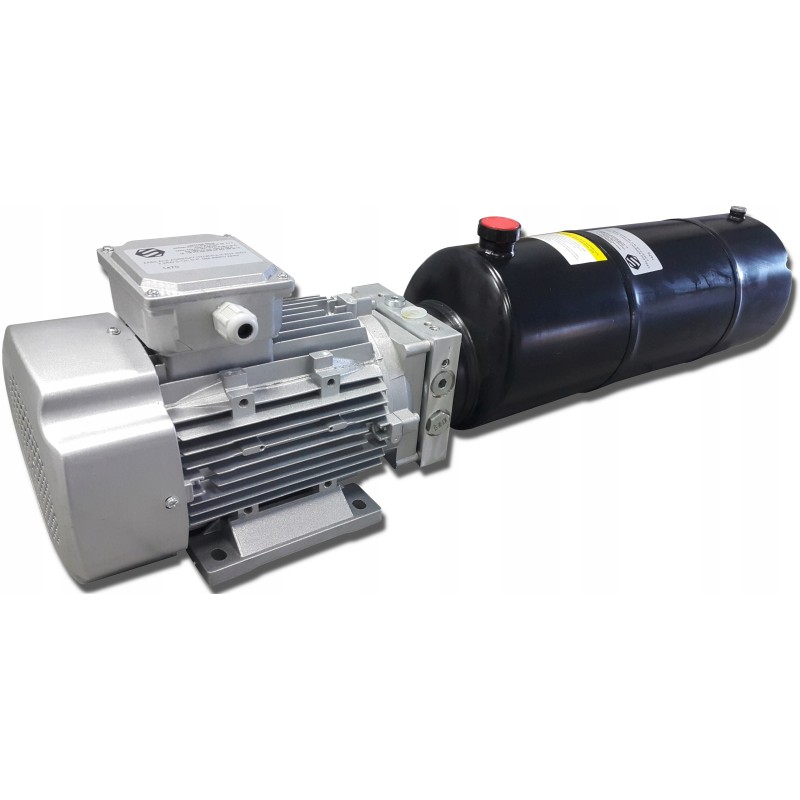

Power supply hydraulic unit 380v 2 2kw 3 7cm3 12l

COMPLETE HYDRAULIC POWER SUPPLY​ 380V SKRAW-MET CODE: [1470]The unit includes: 3.7cm3 hydraulic pump

2.2W 380V 1420rpm electric motor

connecting plate with overflow valve

12L metal tank

The hydraulic unit is perfect for presses tabletop tippers and other electrically powered machines and devices. It can be used in agriculture, horticulture, forestry and construction. It is adapted to work when unloading the cargo box in trailers, dump trucks, hydropacks, rasas, lifts, loading platforms, car lifts, cranes, agricultural and industrial machines.

Allows you to control a single-acting actuator. Under the influence of pressure, the actuator extends, and retracts using gravitational forces and the lifted weight. The unit is complete, ready for operation, just connect the cables and pour oil.

Recommended continuous operation for no longer than 3 minutes. Restart after 5 minutes of rest.

Technical Specifications: Overflow valve (safety): YES

Engine power: 2.2 kW

Engine voltage: 380V

Speed ​​(RPM): 1420 rpm

Oil tank capacity: 12L

Maximum operating pressure: 180 bar

Pump capacity : 3.7 cm3/revolution, in this set 10L/min

Connection internal thread: BSP 3/8'
