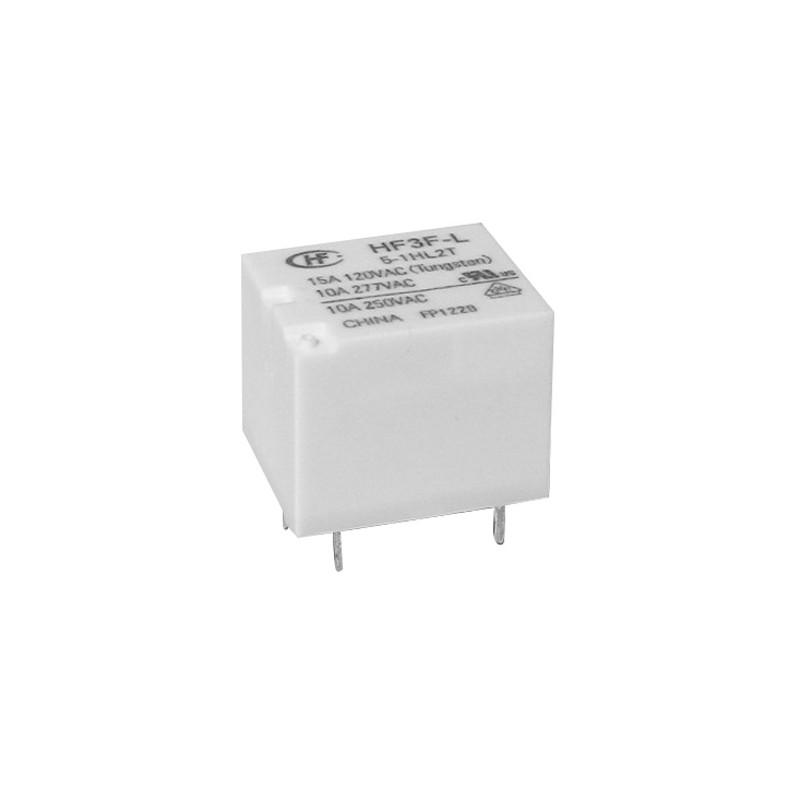

    20 pcs - HF3F-L/12-1ZL2T(610) Hongfa Europe GMBH PCB Mount Latching Power Relay, 12V dc Coil, 10A Switching Current, SPDT
    • 20 pcs - HF3F-L/12-1ZL2T(610) Hongfa Europe GMBH PCB Mount Latching Power Relay, 12V dc Coil, 10A Switching Current, SPDT

    20 pcs - HF3F-L/12-1ZL2T(610) Hongfa Europe GMBH PCB Mount Latching Power Relay, 12V dc Coil, 10A Switching Current, SPDT

    20(Allparts)1762892
    Hongfa Europe GMBH PCB Mount Latching Power Relay, 12V dc Coil, 10A Switching Current, SPDT
    £62.78
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Hongfa SPDT Latching RelayThe Hongfa SPDT latching electromagnetic PCB mount relay is a subminiature high power latching relay. It is actuated with the help of a 12VDC coil and up to 10A DC/AC current through the coil for the relay to switch positions. It has a low mounting height of 15.5mm. This relay has silver alloy contacts. The contact arrangement used is 1 Form A type and has 2 coils latching. Forcibly guided contact is also used for guided protection.Features and Benefits• High power switching capacity up to 30W in case of DC• Sensitive low coil power of 800mW• Service temperature range between -40°C and 85°C• Isolation voltage between coil and contact is 2KVAC• Plastic sealed and flux proofed typeApplications• Used as a control device• Automotive industry
    Product Details
    Hongfa Europe GMBH
    20(Allparts)1762892
    HF3F-L/12-1ZL2T(610)
    10 Items

    Data sheet

    Manufacturer
    Hongfa Europe GMBH
    Dimensions
    19 x 15.2 x 15.5mm
    Height
    15.5mm
    Length
    19mm
    Contact material
    silver alloy
    Depth
    15.2mm
    Number of poles
    1
    A-Supplier
    Allparts-UK/15/R-17
    Series
    HF3F-L
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +80°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Standards Met
    CQC File No:CQC15002121475, cULus File No:E134517, VDE File No:40040757
    Contact Configuration
    SPDT
    Switching Current
    10A
    Life
    1 x 10^7 Cycles
    Coil Resistance
    360Ω
    Maximum Switching Power AC
    2.77 kVA
    Coil Power
    800mW
    Isolation Coil To Contact
    2kV ac
    Maximum Switching Voltage AC
    277V
    Maximum Switching Power DC
    300 W
    Maximum Switching Current AC
    10 A
    Maximum Switching Current DC
    10 A
    Maximum Switching Voltage DC
    30V dc
    Coil Voltage
    12V dc
    Latching
    Yes
