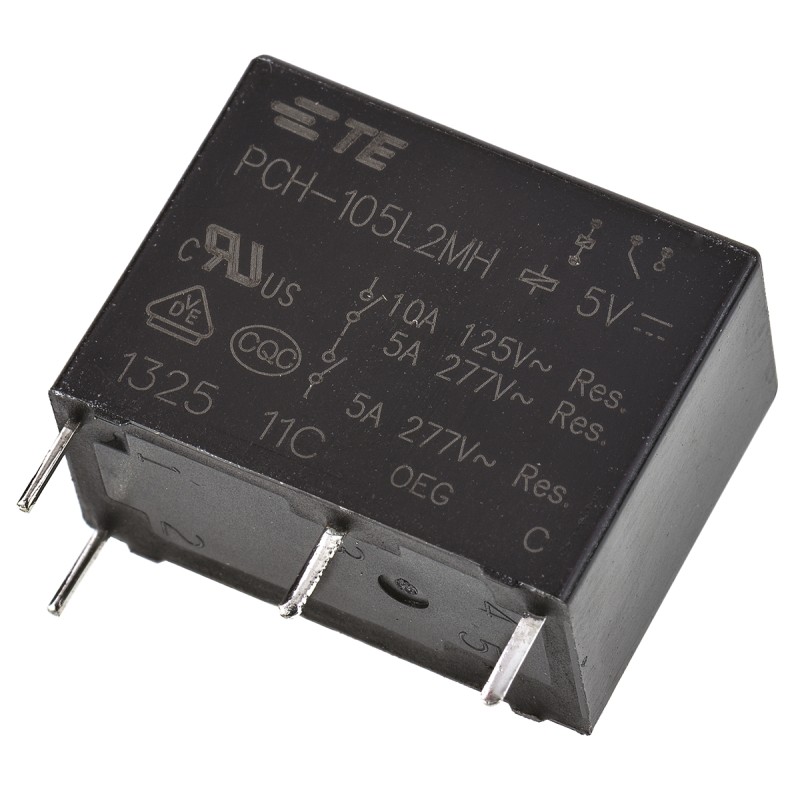

10 pcs - PCH-105L2MH,000 TE Connectivity PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, SPST
    • 10 pcs - PCH-105L2MH,000 TE Connectivity PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, SPST

    10 pcs - PCH-105L2MH,000 TE Connectivity PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, SPST

    10(Allparts)6802502
    TE Connectivity PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, SPST
    £50.82
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TE Connectivity Miniature PCB Relay - PCH SeriesPCH series miniature PCB through hole mount relays with SPST and SPDT AgSnO2 contacts. These miniature PCB through hole mount relays have washtight, sealed plastic covers apart from stock numbers 533-0867, 533-0867 and 533-0873 which have flux proof vented covers. PCB relays with SPST contacts have a senstive 200mW coil. Typical applications for these PCH series PCB relays include HVAC, refrigerators and microwave ovens.High surge voltage capacity, 8000V (1.2/50μs)Ambient temperature, -30 to +85°CContact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)Contact material, AgSnODimensions (mm), H 15.2, W 9.9, D19.8ApprovalsUL, CSA, VDE
    Product Details
    10(Allparts)6802502
    PCH-105L2MH,000
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Height
    15.2mm
    Application
    PCB
    Length
    20mm
    Contact material
    silver alloy
    Depth
    10mm
    Number of poles
    1
    A-Supplier
    Allparts-UK/15/R-17
    Series
    PCH
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Contact Configuration
    SPST
    Switching Current
    5A
    Coil Resistance
    125Ω
    Coil Power
    200mW
    Isolation Coil To Contact
    4kV ac
    Maximum Switching Power DC
    150 W
    Coil Voltage
    5V dc
    Latching
    No
