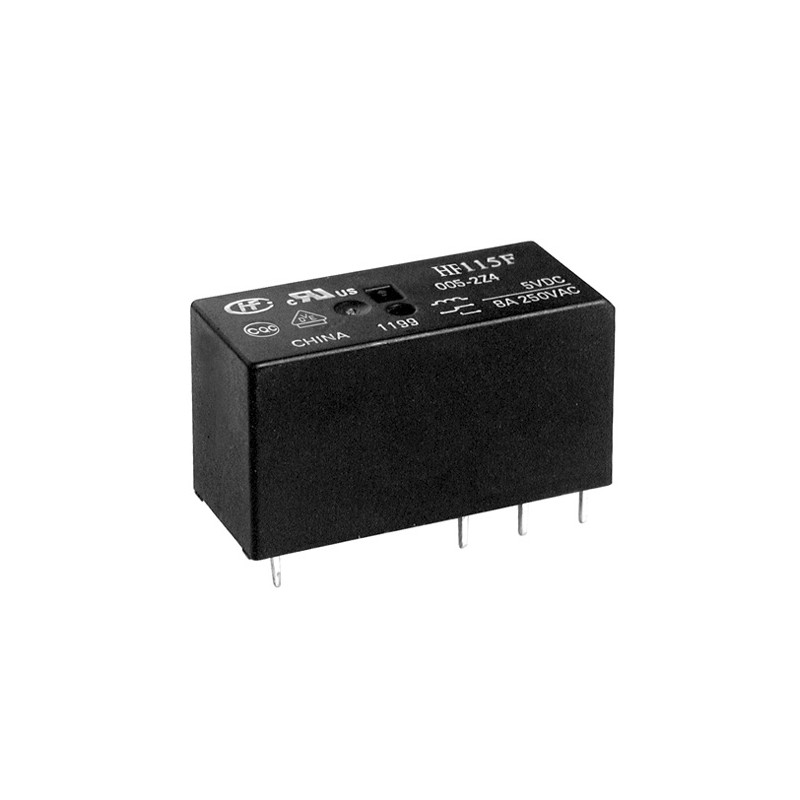

20 pcs - HF115F/005-1HS3BF(610) Hongfa Europe GMBH PCB Mount Power Relay, 5V dc Coil, 12A Switching Current, SPST
    • 20 pcs - HF115F/005-1HS3BF(610) Hongfa Europe GMBH PCB Mount Power Relay, 5V dc Coil, 12A Switching Current, SPST

    20 pcs - HF115F/005-1HS3BF(610) Hongfa Europe GMBH PCB Mount Power Relay, 5V dc Coil, 12A Switching Current, SPST

    20(Allparts)1762789
    Hongfa Europe GMBH PCB Mount Power Relay, 5V dc Coil, 12A Switching Current, SPST
    £50.30
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Hongfa SPNO Non-Latching RelayThe Hongfa SPNO 1-pole non-latching PCB mount relay is actuated with the help of a 5VDC coil and up to 12A DC/AC or 16A DC/AC current through the coil for the relay to switch positions. It is a miniature type high power relay. It can be used with a single coil winding configuration. This relay has silver alloy contact for high electrical endurance.Features and Benefits• Environmental friendly product• Isolation voltage between the coil and contacts is 10KV• Service temperature range between -40°C and 85°C• High mechanical endurance and life expectancy of 10M cycles• Resistant to vibration and abrasion• Low power consumption• Offers excellent board space savingApplications• Used as a control device• Automotive industry• Household appliances• Industrial machinery • Telecommunication
    Product Details
    20(Allparts)1762789
    HF115F/005-1HS3BF(610)
    10 Items

    Data sheet

    Manufacturer
    Hongfa Europe GMBH
    Height
    15.7mm
    Length
    29mm
    Contact material
    silver alloy
    Depth
    12.7mm
    Number of poles
    1
    A-Supplier
    Allparts-UK/15/R-17
    Series
    HF115F
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Contact Configuration
    SPST
    Switching Current
    12 A, 16A
    Life
    1 x 10^7 Cycles
    Coil Resistance
    62Ω
    Maximum Switching Power AC
    4 kVA
    Coil Power
    400mW
    Isolation Coil To Contact
    10kV
    Maximum Switching Voltage AC
    440V
    Maximum Switching Current AC
    12 A, 16 A
    Maximum Switching Current DC
    16 A
    Maximum Switching Voltage DC
    300V dc
    Coil Voltage
    5V dc
    Latching
    No
