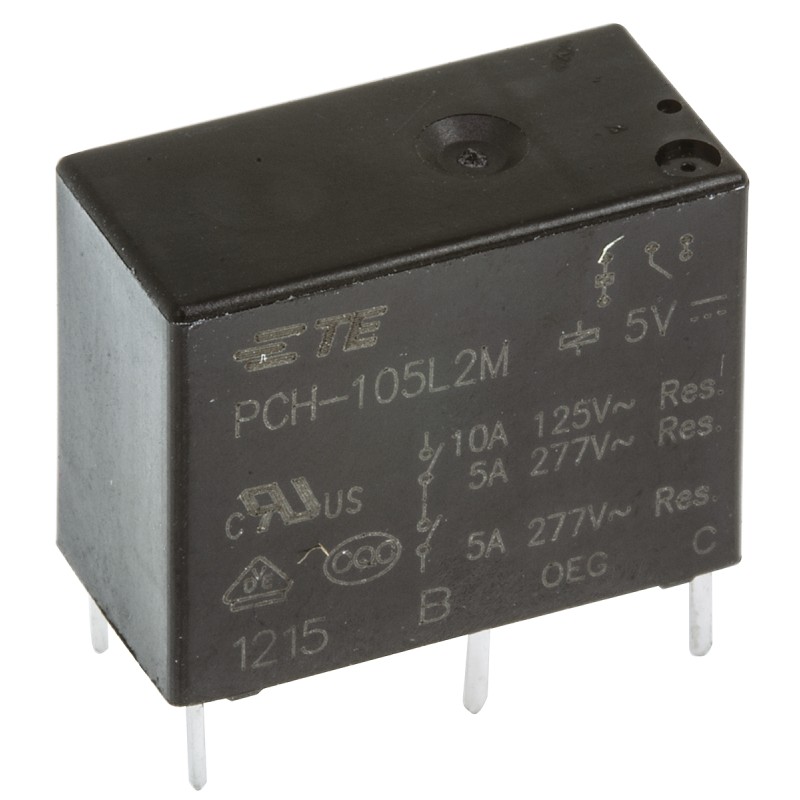

    10 pcs - PCH-105L2M PCH Series Relay,1CO,10A 120ac,5dc 200mW
    • 10 pcs - PCH-105L2M PCH Series Relay,1CO,10A 120ac,5dc 200mW
    • 10 pcs - PCH-105L2M PCH Series Relay,1CO,10A 120ac,5dc 200mW

    10 pcs - PCH-105L2M PCH Series Relay,1CO,10A 120ac,5dc 200mW

    10(Allparts)5330851
    PCH Series Relay,1CO,10A 120ac,5dc 200mW
    £42.82
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TE Connectivity Miniature PCB Relay - PCH SeriesPCH series miniature PCB through hole mount relays with SPST and SPDT AgSnO2 contacts. These miniature PCB through hole mount relays have washtight, sealed plastic covers apart from stock numbers 533-0867, 533-0867 and 533-0873 which have flux proof vented covers. PCB relays with SPST contacts have a senstive 200mW coil. Typical applications for these PCH series PCB relays include HVAC, refrigerators and microwave ovens.High surge voltage capacity, 8000V (1.2/50μs)Ambient temperature, -30 to +85°CContact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)Contact material, AgSnODimensions (mm), H 15.2, W 9.9, D19.8ApprovalsUL, CSA, VDE
    Product Details
    TE Connectivity
    10(Allparts)5330851
    PCH-105L2M
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Dimensions
    20 x 10 x 15.2mm
    Height
    15.2mm
    Application
    PCB
    Length
    20mm
    Contact material
    silver alloy
    Depth
    10mm
    A-Supplier
    Allparts-UK/15/R-17
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Contact Configuration
    SPNO
    Switching Current
    10 A
    Coil Resistance
    125 Ω
    Operating Temperature Range
    -40 - +85°C
    Coil Voltage
    5V dc
