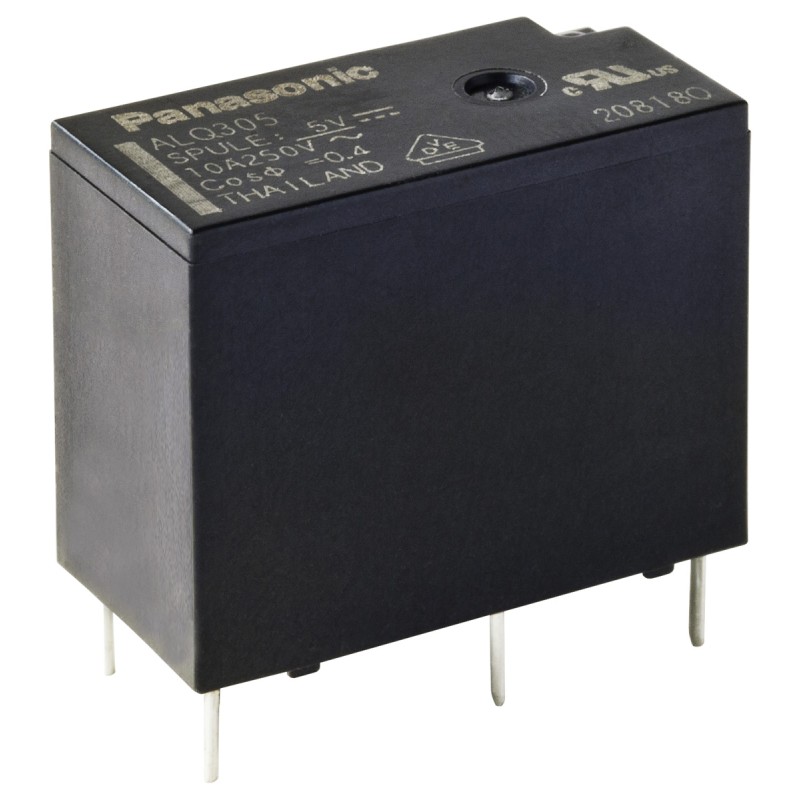

    10 pcs - ALQ305 Panasonic PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPST
    • 10 pcs - ALQ305 Panasonic PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPST

    10 pcs - ALQ305 Panasonic PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPST

    10(Allparts)1347908
    PANASONIC
    Panasonic PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPST
    £37.55
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    LQ (ALQ) Series - PCB RelaysIntroducing the Panasonic LQ (ALQ) Series of Power Relays. These relays are of compact size, can run at a high operating power and are highly reliable and robust under stressful operating conditions. The LQ Relays can be used in various industries and applications: Appliances and white goods, energy, lighting and industrial equipment, Robot and power supply.Features and Benefits• Compact in size with high switching capacity• Ambient temperature: –40°C to +85°C • High surge voltage: 8000 V• High breakdown voltage: 4000 V• High insulation resistanceApplications:• Refrigerators• Cooking ovens• Washing machine• Air conditioners• Motor control• Robot• Power supply
    Product Details
    PANASONIC
    10(Allparts)1347908
    ALQ305
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Height
    15.6mm
    Application
    Air Conditioners, Cooking Ovens, Home Appliances, Industrial Equipment, Motor Controls, Power Supply, Refrigerators, Robots, Washing Machine
    Length
    20mm
    Contact material
    silver alloy
    Depth
    10mm
    Number of poles
    1
    A-Supplier
    Allparts-UK/15/R-17
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Standards Met
    CQC, CSA, cUL, cULus, UL, VDE
    Contact Configuration
    SPST
    Switching Current
    10A
    Life
    Minimum of 10000000 (Mechanical) operations
    Coil Resistance
    125Ω
    Maximum Switching Power AC
    1.25 kVA
    Coil Power
    200mW
    Isolation Coil To Contact
    4kVrms
    Maximum Switching Voltage AC
    250V
    Maximum Switching Power DC
    150 W
    Maximum Switching Voltage DC
    30V dc
    Coil Voltage
    5V dc
    Latching
    No
