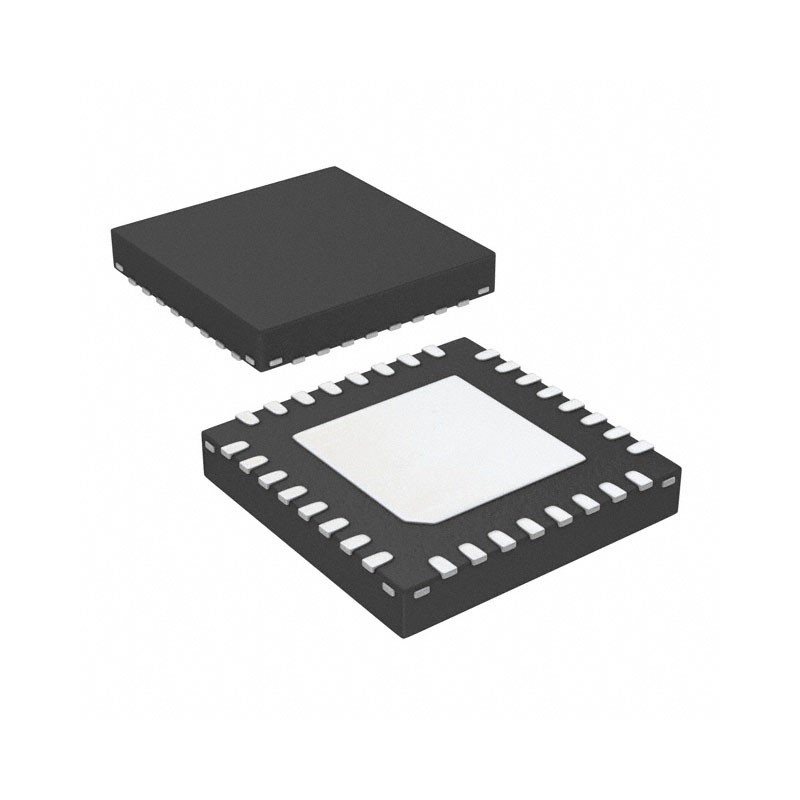

10 pcs : TB6569FTG,8,EL - IC MOTOR DRIVER 10V-45V 32VQFN
    • 10 pcs : TB6569FTG,8,EL - IC MOTOR DRIVER 10V-45V 32VQFN

    10 pcs : TB6569FTG,8,EL - IC MOTOR DRIVER 10V-45V 32VQFN

    10electronicpartsUKTB6569FTG8ELTRND
    £55.00
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Motor Driver Bi-CMOS Parallel, PWM 32-VQFN (5x5)
    Product Details
    10electronicpartsUKTB6569FTG8ELTRND
    TB6569FTG,8,EL
    3 Items

    Data sheet

    Manufacturer
    Toshiba Semiconductor and Storage
    Operating temperature
    -40°C ~ 85°C (TA)
    Part status
    Active
    Interface
    Parallel, PWM
    Series
    -
    Mounting Type
    Surface Mount
    Function
    Driver - Fully Integrated, Control and Power Stage
    Output Configuration
    Half Bridge (2)
    Applications
    General Purpose
    Technology
    Bi-CMOS
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Supplier Device Package
    32-VQFN (5x5)
    Voltage - Supply
    10V ~ 45V
    Current - Output
    4A
    Voltage - Load
    10V ~ 45V
    Motor Type - Stepper
    -
    Motor Type - AC, DC
    Brushed DC
    Step Resolution
    -
