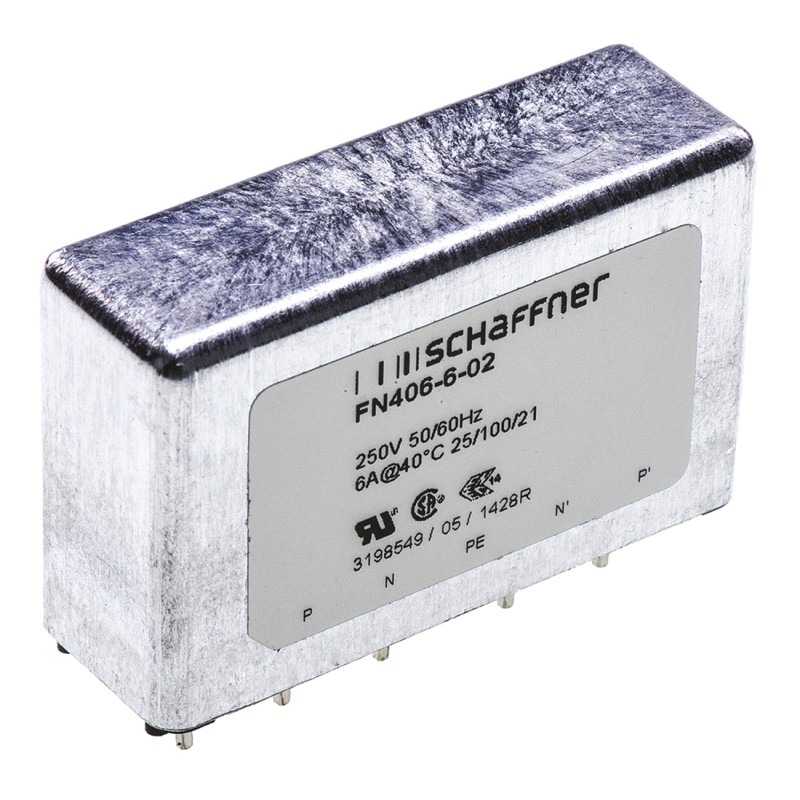

    1 pcs - Schaffner, FN406 6A 250 V ac 400Hz, PCB Mount EMC Filter, Pin, Single Phase
    • 1 pcs - Schaffner, FN406 6A 250 V ac 400Hz, PCB Mount EMC Filter, Pin, Single Phase
    • 1 pcs - Schaffner, FN406 6A 250 V ac 400Hz, PCB Mount EMC Filter, Pin, Single Phase
    • 1 pcs - Schaffner, FN406 6A 250 V ac 400Hz, PCB Mount EMC Filter, Pin, Single Phase

    1 pcs - Schaffner, FN406 6A 250 V ac 400Hz, PCB Mount EMC Filter, Pin, Single Phase

    Allparts-UK/15/R/217-0858
    SCHAFFNER
    £31.18
    Delivery: 4-7 business days
    Quantity
    12 Items

    Product Details
    SCHAFFNER
    Allparts-UK/15/R/217-0858
    FN406-6-02
    12 Items

    Data sheet

    Manufacturer
    SCHAFFNER
    Capacitance
    2.2 nF, 100nF
    Dimensions
    45 x 15 x 29.5mm
    Leakage current
    0.373 mA
    Height
    29.5mm
    Length
    45mm
    Operating frequency
    400Hz
    Depth
    15mm
    Resistance
    1MΩ
    A-Supplier
    Allparts-UK-R
    Series
    FN406
    Maximum Operating Temperature
    +100°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -25°C
    Standards Met
    UL 94 V-0
    Number of Phases
    1
    Maximum Voltage Rating
    250 V ac
    Maximum Current Rating
    6A
    Termination Style
    Pin
    Number of Stages
    Single Stage
    Inductance
    780 μH
