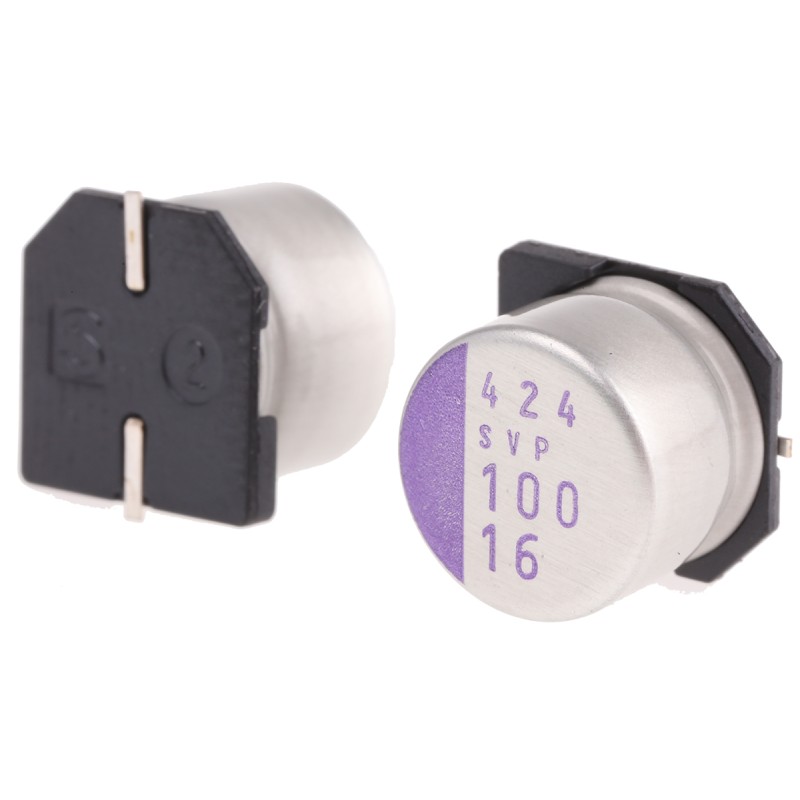

20 pcs - 16SVP100M Panasonic 100μF Surface Mount Polymer Capacitor, 16V dc
    • 20 pcs - 16SVP100M Panasonic 100μF Surface Mount Polymer Capacitor, 16V dc

    20 pcs - 16SVP100M Panasonic 100μF Surface Mount Polymer Capacitor, 16V dc

    20(Allparts)7887520
    PANASONIC
    20 pcs - 16SVP100M Panasonic 100μF Surface Mount Polymer Capacitor, 16V dc
    £55.76
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    OSCON Solid Electrolytic SVP seriesPanasonic OS-CON SVP electrolytic capacitors feature a solid, aluminium construction with a high conductive polymer.Surface mount2000 h guarantee at +105°CExcellent noise reduction capabilityLong life spanHigh voltageHigh reliabilityLow ESR and high ripple currentHalogen freeWealth modelsApplicationsThese aluminium capacitors are recommended for use in industrial infrastructure in industrial PCs, motor drivers, measuring instruments, power supplies, security cameras and inverters. Suitable uses for these electrolytic capacitors include infotainment and comfort accessories within automotive applications and ICT applications such as PCs, base stations, SSD and data centres. SVP series aluminium capacitors are also suitable for home appliances such as air conditioners and home information appliances.
    Product Details
    PANASONIC
    20(Allparts)7887520
    16SVP100M
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Capacitance
    100µF
    Tolerance
    ±20%
    Dimensions
    10 (Dia) x 7.9mm
    Leakage current
    320 μA
    Diameter
    10mm
    Height
    7.9mm
    Length
    7.9mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    SVP
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -55°C
    Voltage
    16V dc
    Technology
    Polymer
    Lifetime
    2000h
    Equivalent Series Resistance
    35mΩ
    Ripple Current
    2670mArms
    Polarised
    Polar
    Electrolyte Type
    Solid
    Dissipation Factor
    12%
