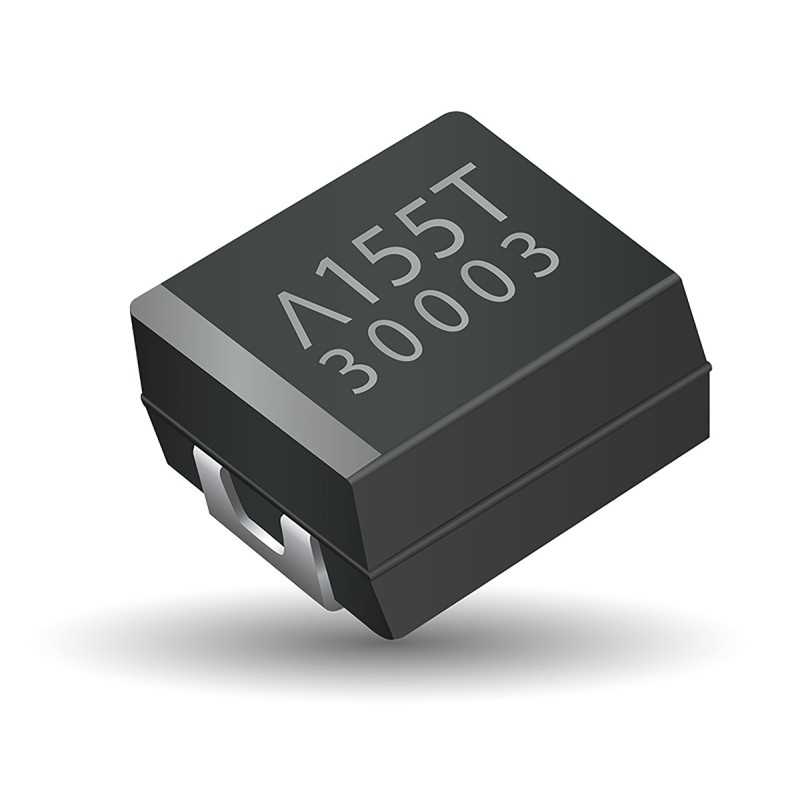

10 pcs - TCQU107M025R0070E KYOCERA AVX 100μF Surface Mount Polymer Capacitor, 25V dc
    • 10 pcs - TCQU107M025R0070E KYOCERA AVX 100μF Surface Mount Polymer Capacitor, 25V dc

    10 pcs - TCQU107M025R0070E KYOCERA AVX 100μF Surface Mount Polymer Capacitor, 25V dc

    10(Allparts)1864738P
    10 pcs - TCQU107M025R0070E KYOCERA AVX 100μF Surface Mount Polymer Capacitor, 25V dc
    £52.43
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    AVX’s TCQ low ESR conductive polymer capacitors series with components developed to deliver high endurance & performance stability to address the reliability requirements of automotive applications.Conductive polymer electrodeBenign failure mode under recommended use conditionsRobust design for automotive applications Humidity 85°C/85%RH, Vr, 1000 hoursBasic reliability 1%/1000hrs@85°C Vr with 60% confidence level -55 to +125°C operation temperatureFull voltage range: 4-50VDCL 0.1 CV3x reflow 260°C compatibleApplicationsDC/DC convertersTelecommunications (Coupling/Decoupling)Industrial & SpecialAutomotive (Body Electronics, Cabin Controls, Infotainment, Comfort, After Market, Etc)
    Product Details
    KYOCERA AVX
    10(Allparts)1864738P
    TCQU107M025R0070E
    10 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Capacitance
    100µF
    Tolerance
    ±20%
    Dimensions
    7.3 x 6.1 x 4.1mm
    Leakage current
    250 μA
    Height
    4.1mm
    Length
    7.3mm
    Depth
    6.1mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    TCQ
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -55°C
    Voltage
    25V dc
    Technology
    Polymer
    Package/Case
    2924 (7361-43)
    Equivalent Series Resistance
    70mΩ
    Polarised
    Polar
    Lead Pitch
    4.4mm
    Electrolyte Type
    Solid
    Dielectric Material Family
    Tantalum
    Dissipation Factor
    12%
    Automotive Standard
    AEC-Q200
