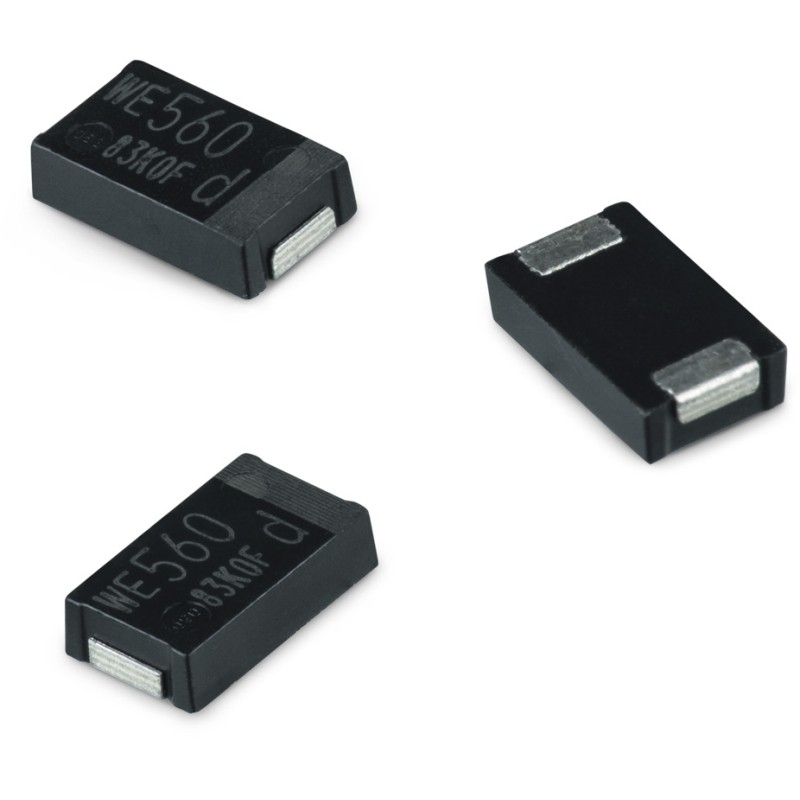

20 pcs - 875015119005 Wurth Elektronik 180μF Surface Mount Polymer Capacitor, 6.3V dc
    • 20 pcs - 875015119005 Wurth Elektronik 180μF Surface Mount Polymer Capacitor, 6.3V dc

    20 pcs - 875015119005 Wurth Elektronik 180μF Surface Mount Polymer Capacitor, 6.3V dc

    20(Allparts)1855785P
    20 pcs - 875015119005 Wurth Elektronik 180μF Surface Mount Polymer Capacitor, 6.3V dc
    £48.77
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    General purpose product series with max. operating temperature of +105 °C.High ripple current capabilityLow profileMounting style: H-Chip SMTCapacitance range: 15 μF ‒ 560 μFCapacitance tolerance: ±20 %Voltage range (UR): 2 ‒ 35 V(DC)Operating temperature: -55 °C up to +105 °CEndurance: 2000h @ +105 °CDimensions (LxWxH) in mm: 7.3 x 4.3 x 1.9Recommended soldering: Reflow solderingApplicationsNoise suppressionInput and output capacitor for DC/DC converterUSB Charger, Smart Meter, Power Bank
    Product Details
    20(Allparts)1855785P
    875015119005
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Capacitance
    180µF
    Tolerance
    ±20%
    Dimensions
    7.3 x 4.3 x 1.9mm
    Leakage current
    113.4 μA
    Height
    1.9mm
    Length
    7.3mm
    Depth
    4.3mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    WCAP-PHGP
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -55°C
    Voltage
    6.3V dc
    Technology
    Polymer
    Lifetime
    2000h
    Equivalent Series Resistance
    12mΩ
    Ripple Current
    5.1A
    Polarised
    Polar
    Dielectric Material Family
    Aluminium
    Dissipation Factor
    6%
