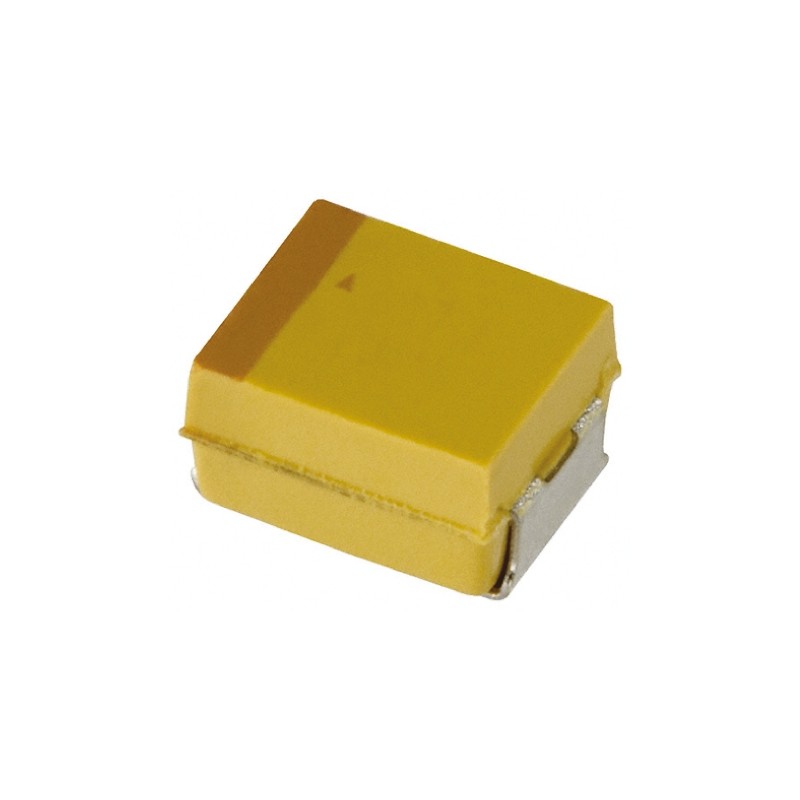

    10 pcs - TCJT226M010R0150 KYOCERA AVX 22μF Surface Mount Polymer Capacitor, 10V dc
    • 10 pcs - TCJT226M010R0150 KYOCERA AVX 22μF Surface Mount Polymer Capacitor, 10V dc

    10 pcs - TCJT226M010R0150 KYOCERA AVX 22μF Surface Mount Polymer Capacitor, 10V dc

    10(electronicparts)7190664
    10 pcs - TCJT226M010R0150 KYOCERA AVX 22μF Surface Mount Polymer Capacitor, 10V dc
    £19.40
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TCJ SeriesTantalum chip capacitors with a conductive polymer electrodeLower ESR, safer non-ignition failure mode and better capacitance retention than conventional MnO2 electrode capacitorsSmall case sizes are ideal for use with cellular phones, PDAs, and other portable electronic equipmentSuitable for power management systems with operating temperatures up to 125°C
    Product Details
    KYOCERA AVX
    10(electronicparts)7190664
    TCJT226M010R0150
    10 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Capacitance
    22µF
    Tolerance
    ±20%
    Dimensions
    3.5 x 2.8 x 1.2mm
    Leakage current
    22 μA
    Height
    1.2mm
    Length
    3.5mm
    Depth
    2.8mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    TCJ
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -55°C
    Voltage
    10V dc
    Technology
    Polymer
    Package/Case
    594951
    Equivalent Series Resistance
    150mΩ
    Electrolyte Type
    Solid
    Dielectric Material Family
    Tantalum
    Dissipation Factor
    6%
