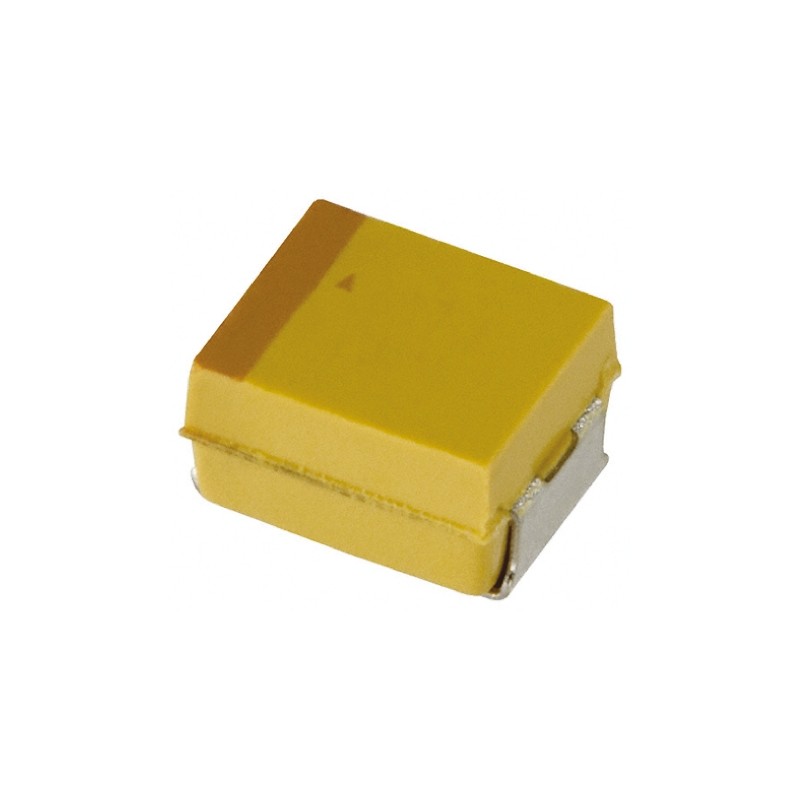

    10 pcs - TCJB686M006R0055 KYOCERA AVX 68μF Surface Mount Polymer Capacitor, 6.3V dc
    • 10 pcs - TCJB686M006R0055 KYOCERA AVX 68μF Surface Mount Polymer Capacitor, 6.3V dc

    10 pcs - TCJB686M006R0055 KYOCERA AVX 68μF Surface Mount Polymer Capacitor, 6.3V dc

    10(electronicparts)7190620
    10 pcs - TCJB686M006R0055 KYOCERA AVX 68μF Surface Mount Polymer Capacitor, 6.3V dc
    £40.34
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TCJ SeriesTantalum chip capacitors with a conductive polymer electrodeLower ESR, safer non-ignition failure mode and better capacitance retention than conventional MnO2 electrode capacitorsSmall case sizes are ideal for use with cellular phones, PDAs, and other portable electronic equipmentSuitable for power management systems with operating temperatures up to 125°C
    Product Details
    KYOCERA AVX
    10(electronicparts)7190620
    TCJB686M006R0055
    10 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Capacitance
    68µF
    Tolerance
    ±20%
    Dimensions
    3.5 x 2.8 x 1.9mm
    Leakage current
    40.8 μA
    Height
    1.9mm
    Length
    3.5mm
    Depth
    2.8mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    TCJ
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -55°C
    Voltage
    6.3V dc
    Technology
    Polymer
    Package/Case
    3528-21
    Equivalent Series Resistance
    55mΩ
    Electrolyte Type
    Solid
    Dielectric Material Family
    Tantalum
    Dissipation Factor
    8%
