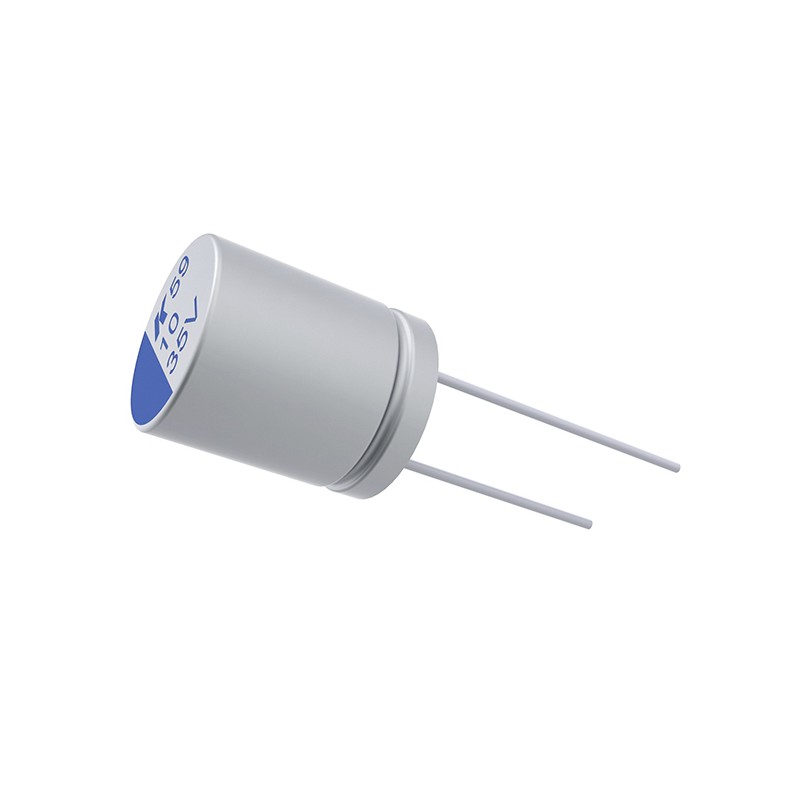

20 pcs - A759MS157M1VEAE030 KEMET 150μF Through Hole Polymer Capacitor, 35V dc
    • 20 pcs - A759MS157M1VEAE030 KEMET 150μF Through Hole Polymer Capacitor, 35V dc

    20 pcs - A759MS157M1VEAE030 KEMET 150μF Through Hole Polymer Capacitor, 35V dc

    20(electronicparts)1797235
    KEMET
    20 pcs - A759MS157M1VEAE030 KEMET 150μF Through Hole Polymer Capacitor, 35V dc
    £64.18
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    KEMET’s A759 Single-Ended Conductive Polymer Aluminum Solid Electrolytic Capacitors offer longer life and greater stability across a wide range of temperatures. The A759 highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties, is able to withstand higher ripple currents during normal operation. The A759 is ideally suited for industrial and commercial applications.ApplicationsTypical applications include long life LED drivers, professional power amplifiers and industrial power supplies.BenefitsThrough-hole form factorHigh voltageLow impedanceHigh ripple current125°C/2,000 hours
    Product Details
    KEMET
    20(electronicparts)1797235
    A759MS157M1VEAE030
    10 Items

    Data sheet

    Manufacturer
    KEMET
    Capacitance
    150µF
    Tolerance
    ±20%
    Dimensions
    10 (Dia) x 12mm
    Leakage current
    788 μA
    Diameter
    10mm
    Height
    12mm
    Length
    31mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    A759
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -55°C
    Voltage
    35V dc
    Technology
    Electrolytic
    Lifetime
    2000h
    Equivalent Series Resistance
    30mΩ
    Ripple Current
    4.63A
    Polarised
    Polar
    Lead Pitch
    5mm
    Electrolyte Type
    Solid
    Dielectric Material Family
    Aluminium
    Dissipation Factor
    12%
