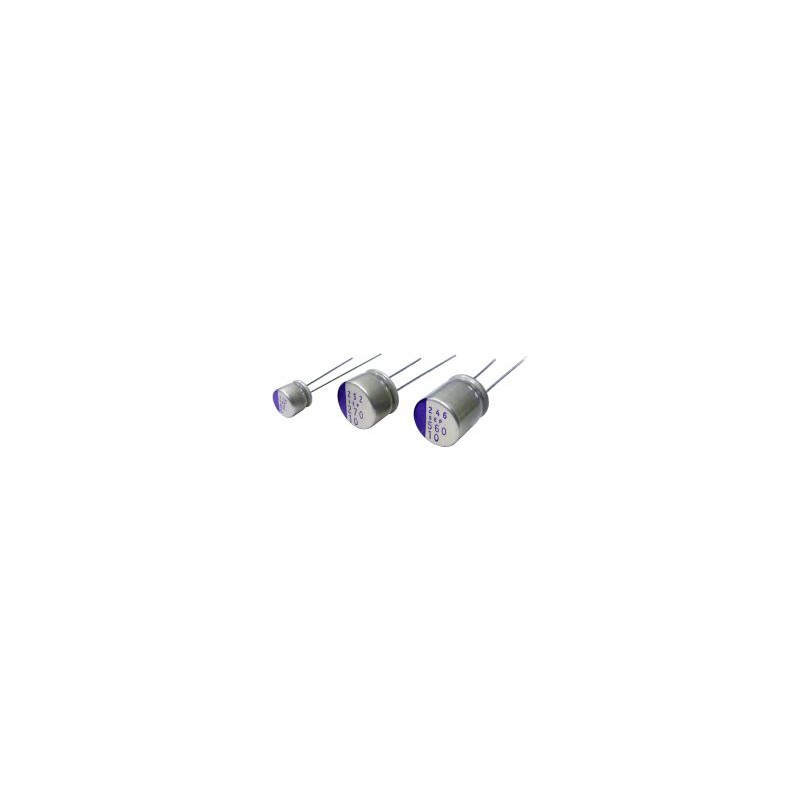

20 pcs - 16SEP150M+T Panasonic 150μF Through Hole Polymer Capacitor, 16V dc
    • 20 pcs - 16SEP150M+T Panasonic 150μF Through Hole Polymer Capacitor, 16V dc
    • 20 pcs - 16SEP150M+T Panasonic 150μF Through Hole Polymer Capacitor, 16V dc

    20 pcs - 16SEP150M+T Panasonic 150μF Through Hole Polymer Capacitor, 16V dc

    20(electronicparts)1799217
    PANASONIC
    20 pcs - 16SEP150M+T Panasonic 150μF Through Hole Polymer Capacitor, 16V dc
    £56.28
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Low ESR obtained by using conductive polymer electrolyte.Pb-freeLong lifeSuperior temperature characteristics.Wide capacitance range from 1μF to 2700μF.High voltage, high reliability.OS-CON is an aluminum solid capacitor with high conductive polymer. OS-CON acquires low Equivalent Series Resistance (ESR), excellent noise reduction capability and frequency characteristics. In addition, OS-CON has a long life span and its ESR has little change even at low temperatures since the electrolyte is solid.Super high voltage : 100 V.DC max.Low ESR and High ripple current (C10 size : 16 V.DC / 8 mΩ / 5800 mAr.m.s.)Long life, Endurance : 105 ℃ 5000 h
    Product Details
    PANASONIC
    20(electronicparts)1799217
    16SEP150M+T
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Capacitance
    150µF
    Tolerance
    ±20%
    Dimensions
    10 (Dia) x 8mm
    Leakage current
    480 μA
    Diameter
    10mm
    Height
    8mm
    Length
    8mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    SEP
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -55°C
    Voltage
    16V dc
    Technology
    Polymer
    Lifetime
    3000h
    Equivalent Series Resistance
    30mΩ
    Ripple Current
    3.02A
    Polarised
    Polar
    Lead Pitch
    5mm
    Electrolyte Type
    Solid
    Dielectric Material Family
    Aluminium
    Dissipation Factor
    0.12%
