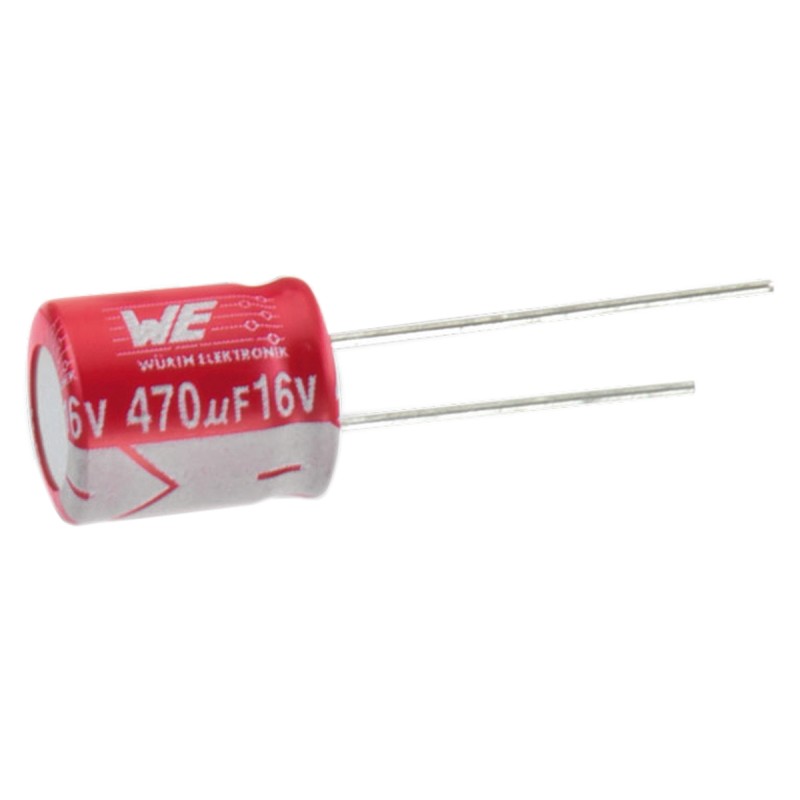

20 pcs - 870025374007 Wurth Elektronik 470μF Through Hole Polymer Capacitor, 16V dc
    • 20 pcs - 870025374007 Wurth Elektronik 470μF Through Hole Polymer Capacitor, 16V dc

    20 pcs - 870025374007 Wurth Elektronik 470μF Through Hole Polymer Capacitor, 16V dc

    20(electronicparts)8392158
    20 pcs - 870025374007 Wurth Elektronik 470μF Through Hole Polymer Capacitor, 16V dc
    £49.52
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth Elektronik General Purpose WCAP-PTG5 Capacitor Series 105°CAluminium Polymer capacitors contain solid conductive polymer instead of wet electrolytic thus the benefits are: High permissible ripple current due to lower ESR at high frequency rangeHigher long term stability and expected lifeNo dry out phenomenon due to solid conductive polymerFeatures and Benefits• Low ESR at high frequency range• High permissible ripple current • Load life of 2000 h @ +105°C• Operating temperature: -55°C to +105°C• Wave soldering is recommendedSolid Radial 105°C
    Product Details
    20(electronicparts)8392158
    870025374007
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Capacitance
    470µF
    Tolerance
    ±20%
    Dimensions
    8 (Dia) x 11.5mm
    Leakage current
    752 μA
    Diameter
    8mm
    Height
    11.5mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    WCAP-PTG5
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -55°C
    Voltage
    16V dc
    Technology
    Polymer
    Lifetime
    2000h
    Equivalent Series Resistance
    12mΩ
    Ripple Current
    5A
    Lead Pitch
    3.5mm
    Dielectric Material Family
    Aluminium
    Dissipation Factor
    10%
