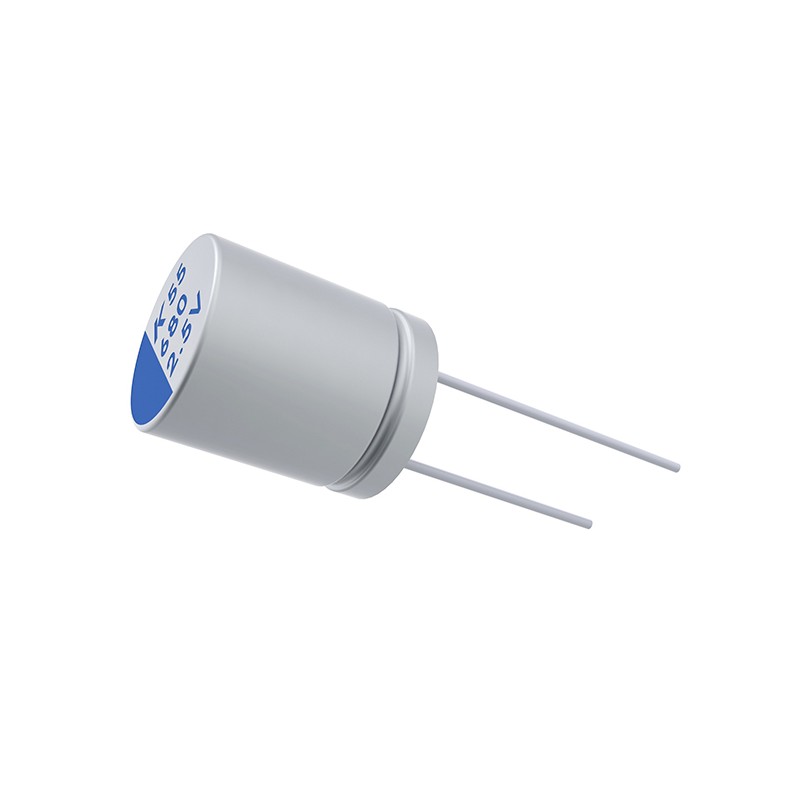

50 pcs - A755KS108M0JAAE013 KEMET 1mF Through Hole Polymer Capacitor, 6.3V dc
    • 50 pcs - A755KS108M0JAAE013 KEMET 1mF Through Hole Polymer Capacitor, 6.3V dc

    50 pcs - A755KS108M0JAAE013 KEMET 1mF Through Hole Polymer Capacitor, 6.3V dc

    50(electronicparts)1739427
    KEMET
    50 pcs - A755KS108M0JAAE013 KEMET 1mF Through Hole Polymer Capacitor, 6.3V dc
    £66.69
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    KEMET’s A755 Single-Ended Conductive Polymer Aluminum Solid Electrolytic Capacitors offer longer life and greater stability across a wide range of temperatures. The A755 highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties, is able to withstand higher ripple currents during normal operation. The A755 is ideally suited for industrial and commercial applications. Typical applications include LED driver power supplies, adapters (laptop power supplies) and medical equipmentThrough-hole form factorLow impedanceHigh ripple currentLong life105°C/5,000 hours
    Product Details
    KEMET
    50(electronicparts)1739427
    A755KS108M0JAAE013
    10 Items

    Data sheet

    Manufacturer
    KEMET
    Capacitance
    1mF
    Tolerance
    ±20%
    Dimensions
    8 (Dia) x 12mm
    Leakage current
    945 μA
    Diameter
    8mm
    Height
    12mm
    A-Supplier
    Allparts-UK/15/R-10
    Series
    A755
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -55°C
    Voltage
    6.3V dc
    Technology
    Electrolytic
    Lifetime
    5000h
    Equivalent Series Resistance
    13mΩ
    Ripple Current
    4.5A
    Polarised
    Polar
    Lead Pitch
    3.5mm
    Electrolyte Type
    Solid
    Dielectric Material Family
    Aluminium
    Dissipation Factor
    10%
