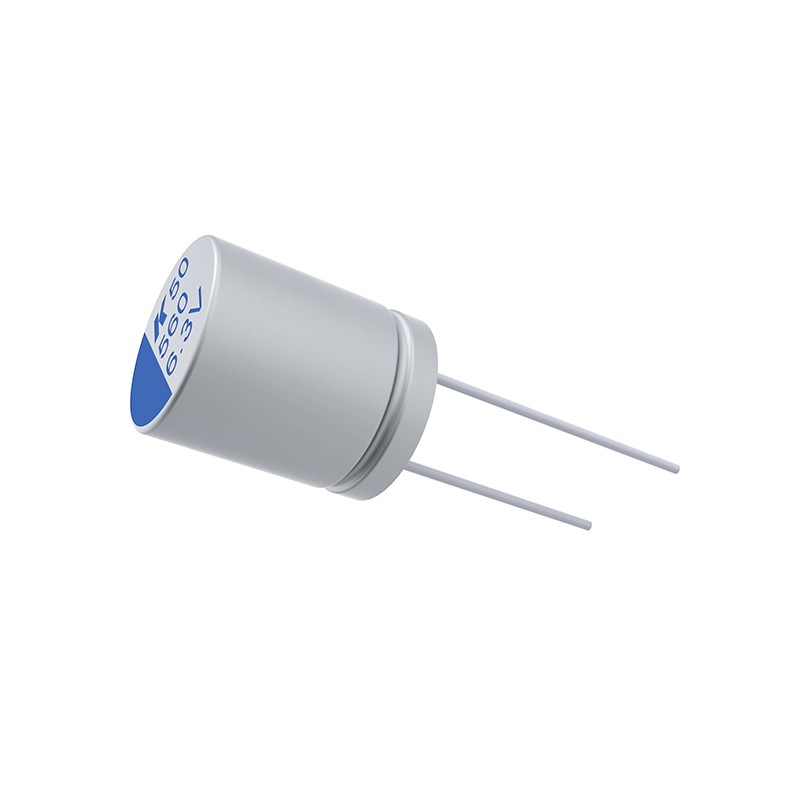

50 pcs - A750EK107M1CAAE018 KEMET 100μF Through Hole Polymer Capacitor, 16V dc
    • 50 pcs - A750EK107M1CAAE018 KEMET 100μF Through Hole Polymer Capacitor, 16V dc

    50 pcs - A750EK107M1CAAE018 KEMET 100μF Through Hole Polymer Capacitor, 16V dc

    50(electronicparts)1739417
    KEMET
    50 pcs - A750EK107M1CAAE018 KEMET 100μF Through Hole Polymer Capacitor, 16V dc
    £40.40
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    KEMET’s A750 Single-Ended Conductive Polymer Aluminum Solid Electrolytic Capacitors offer longer life and greater stability across a wide range of temperatures. The A750 highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties, is able to withstand higher ripple currents during normal operation. The A750 is ideally suited for industrial and commercial applications. Typical applications include mobile phone chargers, computer motherboards, servers and adapters (laptop power supplies)Through-hole form factorLow impedanceHigh ripple current105°C/2,000 hours
    Product Details
    KEMET
    50(electronicparts)1739417
    A750EK107M1CAAE018
    10 Items

    Data sheet

    Manufacturer
    KEMET
    Capacitance
    100µF
    Tolerance
    ±20%
    Dimensions
    6.3 (Dia) x 8mm
    Leakage current
    320 μA
    Diameter
    6.3mm
    Height
    8mm
    A-Supplier
    Allparts-UK/15/R-10
    Series
    A750
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -55°C
    Voltage
    16V dc
    Technology
    Electrolytic
    Lifetime
    2000h
    Equivalent Series Resistance
    18mΩ
    Ripple Current
    2.9A
    Polarised
    Polar
    Lead Pitch
    2.5mm
    Electrolyte Type
    Solid
    Dielectric Material Family
    Aluminium
    Dissipation Factor
    12%
