Description

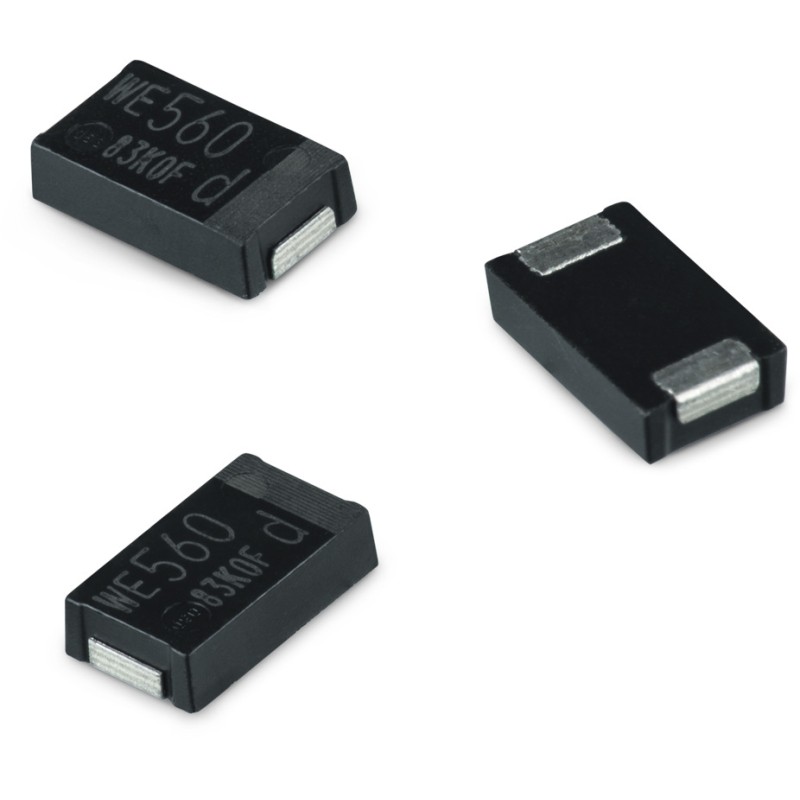

Super low ESR product seriesHigh ripple current capabilityLow profileMounting style: H-Chip SMTCapacitance range: 330 μF ‒ 560 μFCapacitance tolerance: ±20 %Voltage range (UR): 2 ‒ 2.5 V(DC)Operating temperature: -55 °C up to +105 °CEndurance: 2000h @ +105 °CDimensions (LxWxH) in mm: 7.3 x 4.3 x 1.9Recommended soldering: Reflow solderingApplicationsNoise suppressionInput and output capacitor for DC/DC converterUSB Charger, Smart Meter, Power BankCommunication infrastructure, Server, Mainboards
Product Details
10(electronicparts)1855724
875046319001
10 Items
Data sheet
- Manufacturer
- Wurth Elektronik
- Capacitance
- 470µF
- Tolerance
- ±20%
- Dimensions
- 7.3 x 4.3 x 1.9mm
- Leakage current
- 117.5 μA
- Height
- 1.9mm
- Length
- 7.3mm
- Depth
- 4.3mm
- A-Supplier
- Allparts-UK/15/R-11
- Series
- WCAP-PHSE
- Maximum Operating Temperature
- +105°C
- Mounting Type
- Surface Mount
- Minimum Operating Temperature
- -55°C
- Voltage
- 2.5V dc
- Technology
- Polymer
- Lifetime
- 2000h
- Equivalent Series Resistance
- 3mΩ
- Ripple Current
- 10.2A
- Polarised
- Polar
- Dielectric Material Family
- Aluminium
- Dissipation Factor
- 6%
