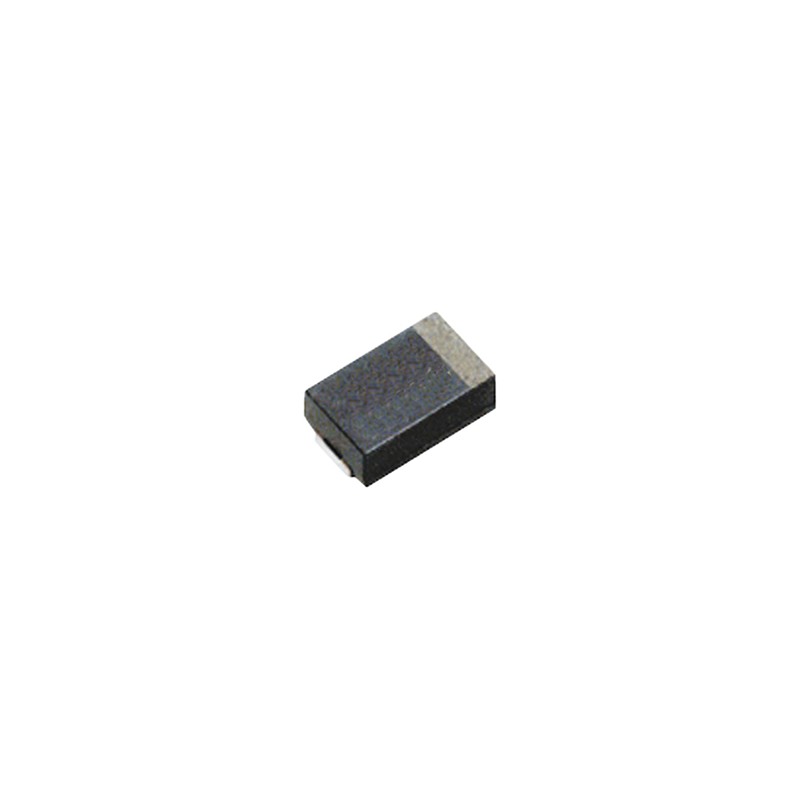

20 pcs - EEFSX0G151E7 Panasonic 150μF Surface Mount Polymer Capacitor, 4V dc
    • 20 pcs - EEFSX0G151E7 Panasonic 150μF Surface Mount Polymer Capacitor, 4V dc

    20 pcs - EEFSX0G151E7 Panasonic 150μF Surface Mount Polymer Capacitor, 4V dc

    20(electronicparts)8663959
    PANASONIC
    20 pcs - EEFSX0G151E7 Panasonic 150μF Surface Mount Polymer Capacitor, 4V dc
    £34.45
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SP-CAP Surface Mount Type S SeriesPanasonic Conductive Polymer Aluminium Capacitors series. These capacitors are ideal for ensuring the safe operation of sensitive components within your electronic circuits.Features & Benefits:SS, ST and SR Series are low profile (1.0 mm (maximum), 1.1 mm, 1.4 mm height) productsLow ESR, SX Series: 4.5 mΩ to 9 mΩ and SS, ST and SR Series up to 15 mΩSX series has large capacitance of up to 560 μF maximumTemperature Range: -55°C to +105°CRated Working Voltage Range: 2 V dc to 6.3 V dcCapacitance Tolerance: ±20%DC Leakage Current: I ≤0.1CV (μA) after 2 minutes
    Product Details
    PANASONIC
    20(electronicparts)8663959
    EEFSX0G151E7
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Capacitance
    150µF
    Tolerance
    ±20%
    Dimensions
    7.3 x 4.3 x 1.9mm
    Leakage current
    60 μA
    Height
    1.9mm
    Length
    7.3mm
    Depth
    4.3mm
    A-Supplier
    Allparts-UK/15/R-10
    Series
    SP-CAP SX
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -55°C
    Voltage
    4V dc
    Technology
    Polymer
    Lifetime
    2000h
    Equivalent Series Resistance
    7mΩ
    Ripple Current
    7Arms
    Polarised
    Polar
    Dissipation Factor
    6%
