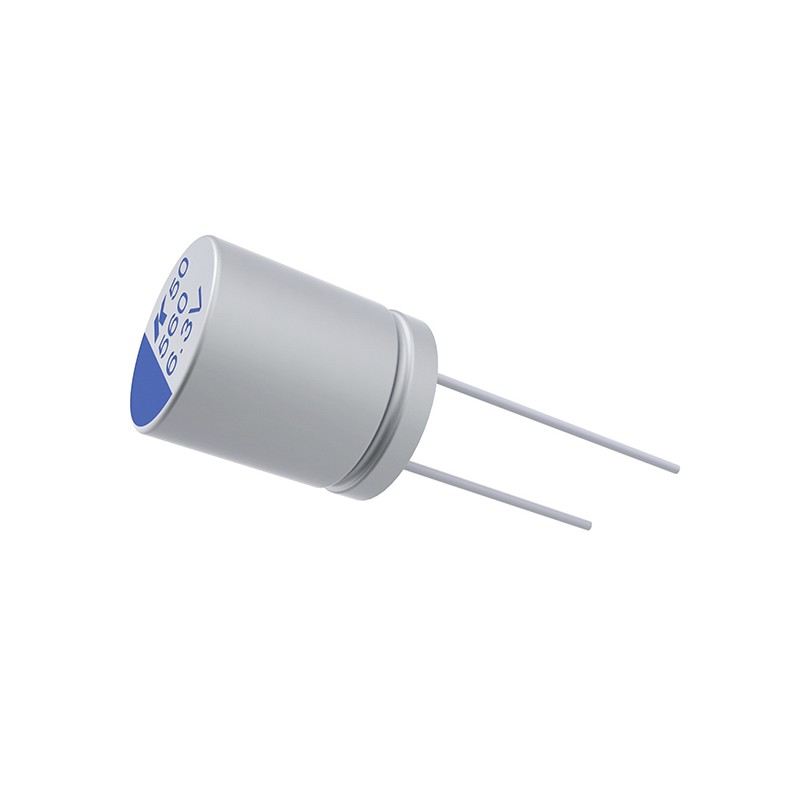

50 pcs - A750KK108M0JAAE015 KEMET 1mF Through Hole Polymer Capacitor, 6V dc
    • 50 pcs - A750KK108M0JAAE015 KEMET 1mF Through Hole Polymer Capacitor, 6V dc

    50 pcs - A750KK108M0JAAE015 KEMET 1mF Through Hole Polymer Capacitor, 6V dc

    50(electronicparts)1744553
    KEMET
    50 pcs - A750KK108M0JAAE015 KEMET 1mF Through Hole Polymer Capacitor, 6V dc
    £28.08
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    KEMET’s A750 Single-Ended Conductive Polymer aluminium Solid Electrolytic Capacitors offer longer life and greater stability across a wide range of temperatures. The A750 highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties, is able to withstand higher ripple currents during normal operation. The A750 is ideally suited for industrial and commercial applications.ApplicationsTypical applications include mobile phone chargers, computer motherboards, servers and adapters (laptop power supplies).Through-hole form factorLow impedanceHigh ripple current105°C/2,000 hours
    Product Details
    KEMET
    50(electronicparts)1744553
    A750KK108M0JAAE015
    10 Items

    Data sheet

    Manufacturer
    KEMET
    Capacitance
    1mF
    Tolerance
    ±20%
    Dimensions
    8 (Dia) x 8mm
    Leakage current
    1.26 mA
    Diameter
    8mm
    Height
    8mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    A750
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -55°C
    Voltage
    6V dc
    Technology
    Polymer
    Lifetime
    2000h
    Equivalent Series Resistance
    15mΩ
    Ripple Current
    4.1A
    Polarised
    Polar
    Lead Pitch
    3.5mm
    Electrolyte Type
    Solid
    Dielectric Material Family
    Aluminium
    Dissipation Factor
    12%
