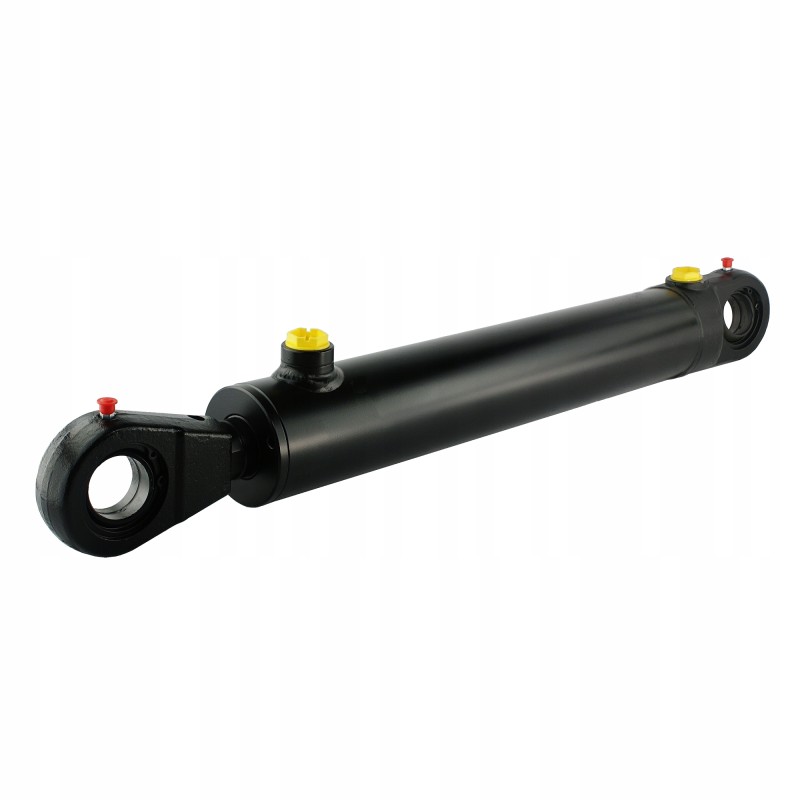

Hydraulic piston cylinder 80 45 stroke 320mm l 663

DOUBLE-ACTING HYDRAULIC CYLINDER, COMPLETE WITH EARS ON SOCKET BEARINGS Production:

Original product of the Hydrolider brand, manufacturer's symbol: 1.31.60.003, CJ2F 80/45/320 U40

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and widely industry.

The actuator is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

DEAR CUSTOMER, READ BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Head mounting on the rod side: screwed on

Gland type (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Outer diameter of the piston (pipe): 92 mm

Internal diameter of the piston (pipe): 80 mm

Diameter of the piston rod (rod): 45 mm

Diameter of holes for pins: 40mm

Stroke (working movement) of the piston rod: 320 mm

Length at rest measured in the hole axes: 663 mm

Internal threads for connections: M27x2

Operating parameters:

Maximum permissible operating pressure: 240 bar

Permissible ambient temperature: -40ºC to +60ºC

Permissible oil temperature: -15ºC to +80ºC

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the change in oil pressure in the hydraulic system (photo):
