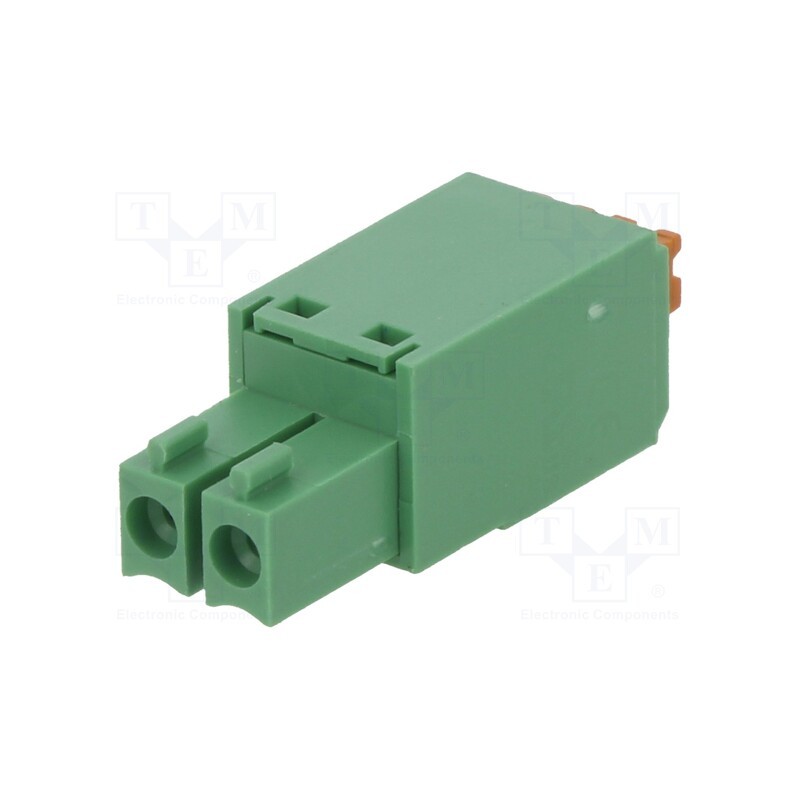

    1 pcs x DEGSON ELECTRONICS - 15EDGKN-3.5-02P-14-1000AH - Pluggable terminal block, 3.5mm, ways: 2, straight, plug, female
    • 1 pcs x DEGSON ELECTRONICS - 15EDGKN-3.5-02P-14-1000AH - Pluggable terminal block, 3.5mm, ways: 2, straight, plug, female

    1 pcs x DEGSON ELECTRONICS - 15EDGKN-3.5-02P-14-1000AH - Pluggable terminal block, 3.5mm, ways: 2, straight, plug, female

    1 x DEGSON ELECTRONICS - 15EDGKN-3.5-02P-14-1000AH
    Pluggable terminal block, 3.5mm, ways: 2, straight, plug, female

    Manufacturer part number: 15EDGKN-3.5-02P-14-1000AH

    Allparts-uk Symbol: 15EDGKN-3.5-02P

    £9.80
    Delivery: 7-10 business days
    Quantity
    4532 Items

    Product Details
    DEGSON ELECTRONICS
    1 x DEGSON ELECTRONICS - 15EDGKN-3.5-02P-14-1000AH
    15EDGKN-3.5-02P-14-1000AH
    4532 Items

    Data sheet

    Manufacturer
    DEGSON ELECTRONICS
    Flammability ratingECE R-118
    This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
    Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
    Rated volage U0/U where
    Operating temperature
    -40...105°C
    Conform to the norm
    CE UL VDE
    Number of terminals
    2
    Spatial orientationInformation about relative position of each cable, terminals or PCB entry
    straight
    Body material
    polyamide 66
    Connector
    plug
    Colour
    green
    Current rating
    8A
    Wire size
    28AWG...16AWG
    Kind of connector
    female
    Contact material
    phosphor bronze
    Connector pinout layout
    1x2
    Mechanical mounting
    for cable
    Connector variant
    with push button
    Electrical mounting
    spring clamp
    Wire cross-section
    0.2...1mm2
    Type of connector
    pluggable terminal block
    Number of ways
    2
    Locking system
    friction lock
