5 pcs x NINIGI - TBG-5-PW-2P/GN - Pluggable terminal block, Contacts ph: 5.08mm, ways: 2, straight
    • 5 pcs x NINIGI - TBG-5-PW-2P/GN - Pluggable terminal block, Contacts ph: 5.08mm, ways: 2, straight

    5 pcs x NINIGI - TBG-5-PW-2P/GN - Pluggable terminal block, Contacts ph: 5.08mm, ways: 2, straight

    5 x NINIGI - TBG-5-PW-2P/GN
    NINIGI

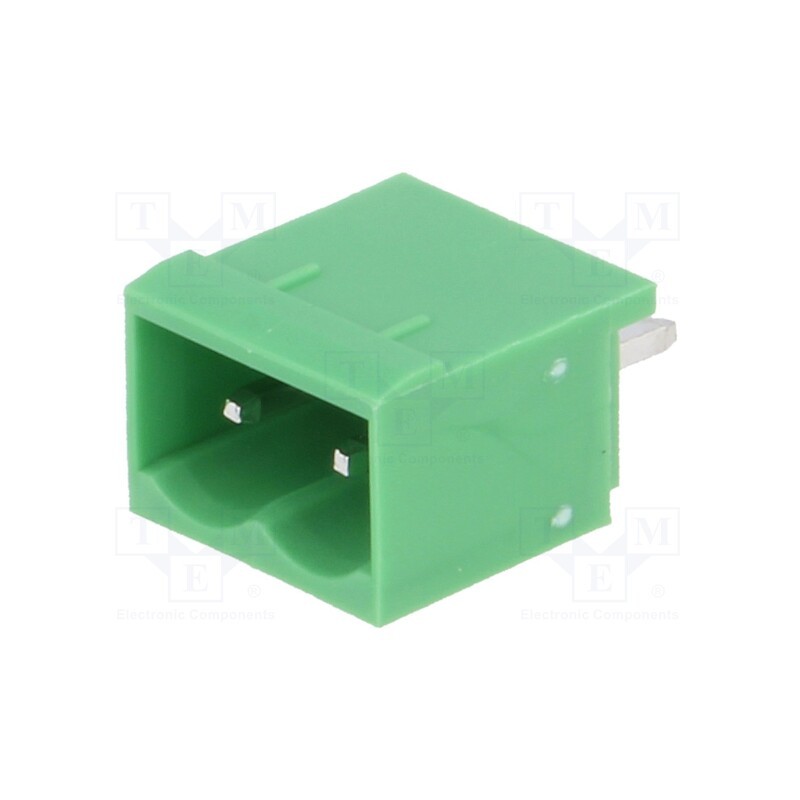

    Pluggable terminal block, Contacts ph: 5.08mm, ways: 2, straight

    Manufacturer part number: TBG-5-PW-2P/GN

    Allparts-uk Symbol: TBG-5-PW-2P/GN

    £9.78
    Delivery: 7-10 business days
    Quantity
    11271 Items

    Product Details
    NINIGI
    5 x NINIGI - TBG-5-PW-2P/GN
    TBG-5-PW-2P/GN
    11271 Items

    Data sheet

    Manufacturer
    NINIGI
    Flammability ratingECE R-118
    This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
    Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
    Rated volage U0/U where
    Operating temperature
    -40...105°C
    Spatial orientationInformation about relative position of each cable, terminals or PCB entry
    straight
    Height
    11.9mm
    Body material
    polyamide
    Connector
    socket
    Colour
    green
    Current rating
    15A
    Kind of connector
    male
    Contact material
    brass
    Contact plating
    tinned
    Depth
    8mm
    Number of pins
    2
    Connector pinout layout
    1x2
    Mechanical mounting
    on PCBs
    Electrical mounting
    THT
    Type of connector
    pluggable terminal block
    Number of ways
    2
    Locking system
    for latch
