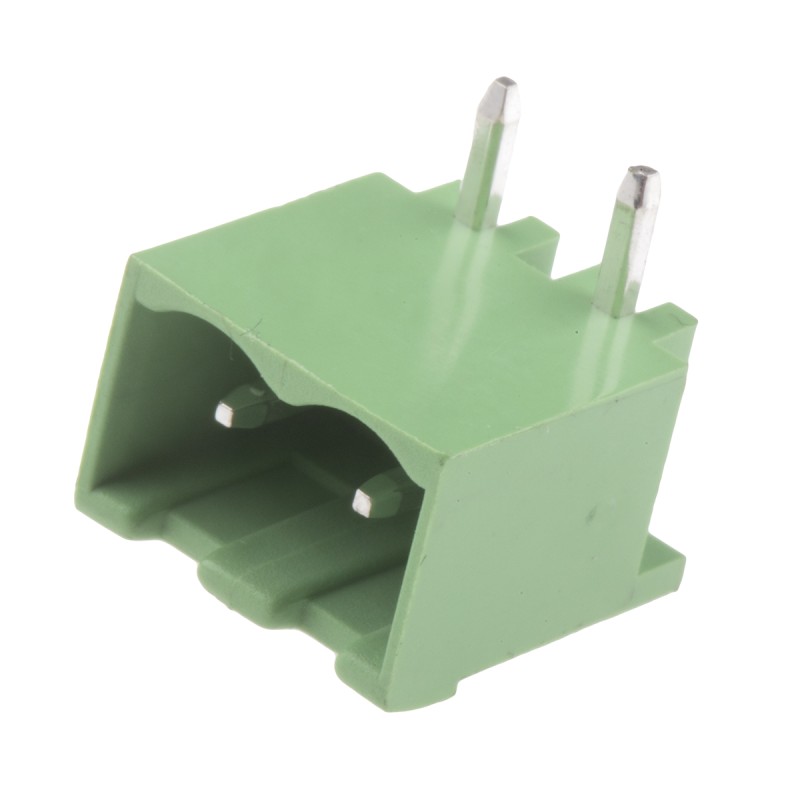

50 pcs - RS PRO 5.08mm Pitch 2 Way Right Angle Pluggable Terminal Block, Header, Through Hole, Solder Termination

RS PRO, 2 Way, 1 Row, Right Angle PCB Terminal Block HeaderThis terminal block header from RS PRO is used to secure two or more wires together. The block has terminal pins made of tin-plated brass material, so it has excellent electrical conductivity and resistance to rust and corrosion. The product has a total length of 11.4 mm, making it ideal for applications where space is limited. It has a current rating of 15 A and a voltage rating of 300 V, which means it's safe to use in a wide range of electronic setups. The part meets Restriction of Hazardous Substances (RoHS) standards, meaning it contains only minimal amounts of any harmful materials. It has also been tested by engineers for safety and quality.Features and Benefits• Right angle body orientation• Green colour• Current rating of 15 A• Male gender• Length of 11.4 mm• Width of 12.1 mm• Depth of 8.3 mm• Polyamide material• Through-hole mounting type• Two contacts• Single row• Pitch of 5.08 mm• Insulation resistance of 1000 MΩ• Contact resistance of 20 mΩ• Shrouded• Operating temperature range of -40°C to +105°C• Tin-plated brass pins• Solder termination method• PCB (printed circuit board) header type• Voltage rating of 300 V
