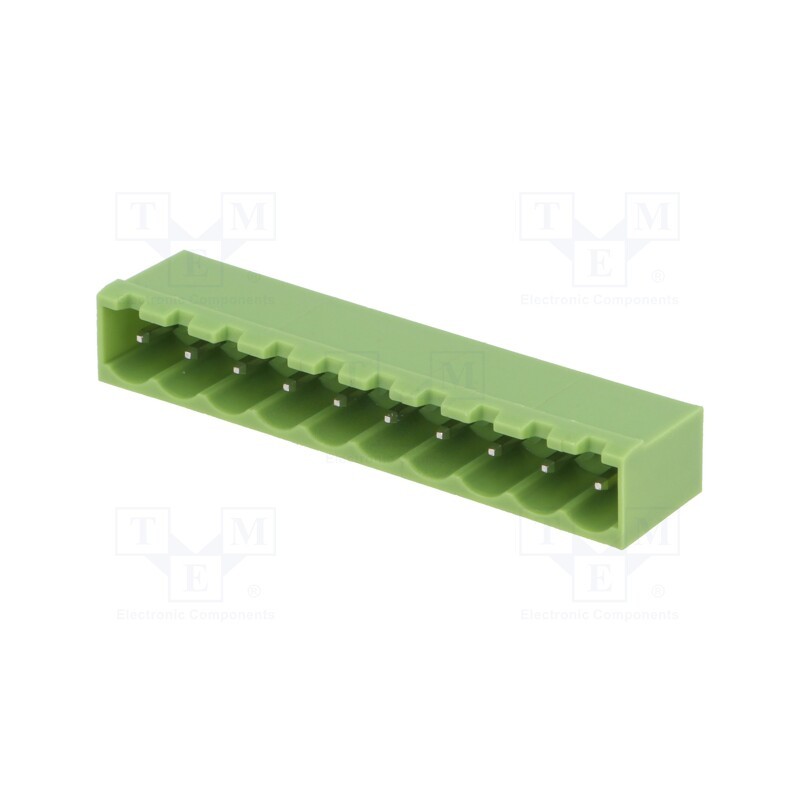

    20 pcs : XY2500V-D(5.08)-10PIN - Pluggable terminal block, Contacts ph: 5.08mm, ways: 10, straight
    • 20 pcs : XY2500V-D(5.08)-10PIN - Pluggable terminal block, Contacts ph: 5.08mm, ways: 10, straight

    20 pcs : XY2500V-D(5.08)-10PIN - Pluggable terminal block, Contacts ph: 5.08mm, ways: 10, straight

    20(Allparts) TBG5PW10PGN
    XINYA
    Pluggable terminal block, Contacts ph: 5.08mm, ways: 10, straight

    Manufacturer part number: XY2500V-D(5.08)-10PIN

    Allparts-uk Symbol: TBG-5-PW-10P-GN

    £29.33
    Delivery: 7-10 business days
    Quantity
    5 Items

    Description
    Pluggable terminal block, Contacts ph: 5.08mm, ways: 10, straight

    Manufacturer part number: XY2500V-D(5.08)-10PIN

    Allparts-uk Symbol: TBG-5-PW-10P-GN

    Product Details
    XINYA
    20(Allparts) TBG5PW10PGN
    XY2500V-D(5.08)-10PIN
    5 Items

    Data sheet

    Manufacturer
    XINYA
    Flammability ratingECE R-118
    This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
    Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
    Rated volage U0/U where
    Operating temperature
    -40...105°C
    Conform to the norm
    UL
    Spatial orientationInformation about relative position of each cable, terminals or PCB entry
    straight
    Height
    12mm
    Body material
    polyamide 66
    Connector
    socket
    Colour
    green
    Current rating
    15A
    Kind of connector
    male
    Contact material
    brass
    Contact plating
    tinned
    Number of pins
    10
    Connector pinout layout
    1x10
    Mechanical mounting
    on PCBs
    Electrical mounting
    THT
    Type of connector
    pluggable terminal block
    Number of ways
    10
    Locking system
    friction lock
