    10 pcs : TBW-5-8P/GN - Pluggable terminal block, Contacts ph: 5.08mm, ways: 8, straight
    • 10 pcs : TBW-5-8P/GN - Pluggable terminal block, Contacts ph: 5.08mm, ways: 8, straight

    10 pcs : TBW-5-8P/GN - Pluggable terminal block, Contacts ph: 5.08mm, ways: 8, straight

    10(Allparts) TBW58PGN
    NINIGI

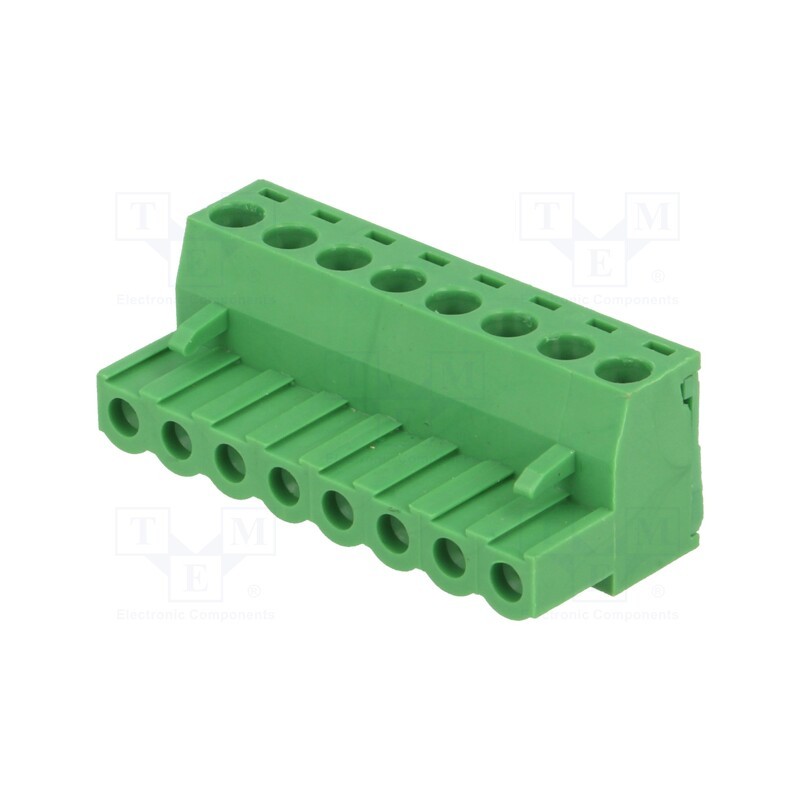

    Pluggable terminal block, Contacts ph: 5.08mm, ways: 8, straight

    Manufacturer part number: TBW-5-8P/GN

    Allparts-uk Symbol: TBW-5-8P/GN

    £48.50
    Delivery: 7-10 business days
    Quantity
    5 Items

    Description
    Pluggable terminal block, Contacts ph: 5.08mm, ways: 8, straight

    Manufacturer part number: TBW-5-8P/GN

    Allparts-uk Symbol: TBW-5-8P/GN

    Product Details
    NINIGI
    10(Allparts) TBW58PGN
    TBW-5-8P/GN
    5 Items

    Data sheet

    Manufacturer
    NINIGI
    Flammability ratingECE R-118
    This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
    Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
    Rated volage U0/U where
    Operating temperature
    -40...105°C
    Number of terminals
    8
    Spatial orientationInformation about relative position of each cable, terminals or PCB entry
    straight
    Height
    15.2mm
    Length
    40.64mm
    Body material
    polyamide
    Connector
    plug
    Colour
    green
    Current rating
    15A
    Kind of connector
    female
    Contact material
    brass
    Contact plating
    tinned
    Depth
    17.7mm
    Connector pinout layout
    1x8
    Mechanical mounting
    for cable
    Electrical mounting
    screw terminal
    Wire cross-section
    2.5mm2
    Type of connector
    pluggable terminal block
    Number of ways
    8
    Locking system
    latch
