Description

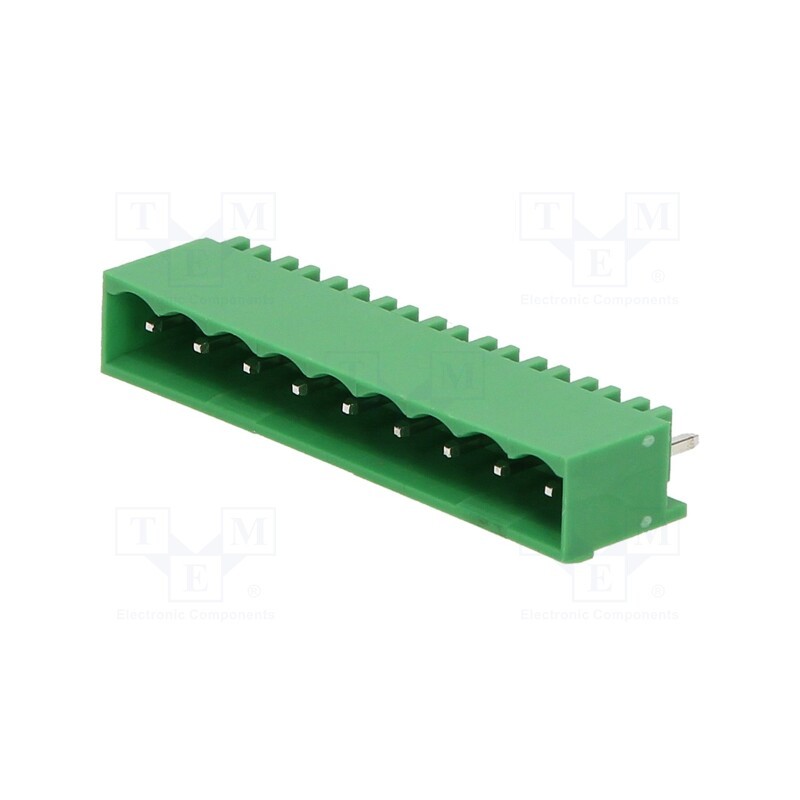

Pluggable terminal block, Contacts ph: 5.08mm, ways: 9, straight
Manufacturer part number: TBG-5-PW-9P/GN
Allparts-uk Symbol: TBG-5-PW-9P/GN
Product Details
10(Allparts) TBG5PW9PGN
TBG-5-PW-9P/GN
5 Items
Data sheet
- Manufacturer
- NINIGI
- Flammability ratingECE R-118
- This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
- Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
- Rated volage U0/U where
- Operating temperature
- -40...105°C
- Spatial orientationInformation about relative position of each cable, terminals or PCB entry
- straight
- Height
- 11.9mm
- Body material
- polyamide
- Connector
- socket
- Colour
- green
- Current rating
- 15A
- Kind of connector
- male
- Contact material
- brass
- Contact plating
- tinned
- Depth
- 8mm
- Number of pins
- 9
- Connector pinout layout
- 1x9
- Mechanical mounting
- on PCBs
- Electrical mounting
- THT
- Type of connector
- pluggable terminal block
- Number of ways
- 9
- Locking system
- for latch
