Description

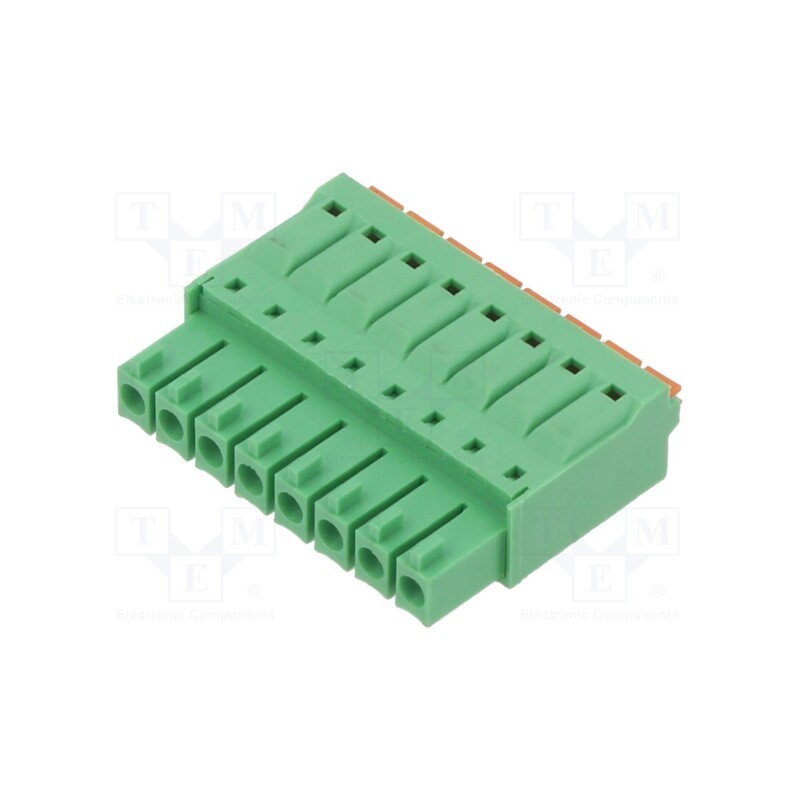

Pluggable terminal block, 3.5mm, ways: 8, straight, plug, female
Manufacturer part number: KD0810500000G
Allparts-uk Symbol: KD0810500000G
Product Details
10(Allparts) KD0810500000G
KD0810500000G
5 Items
Data sheet
- Manufacturer
- AMPHENOL ANYTEK
- Flammability ratingECE R-118
- This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
- Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
- Rated volage U0/U where
- Operating temperature
- -40...115°C
- Number of terminals
- 8
- Spatial orientationInformation about relative position of each cable, terminals or PCB entry
- straight
- Body material
- thermoplastic
- Connector
- plug
- Colour
- green
- Current rating
- 5.5A
- Wire size
- 24AWG...16AWG
- Kind of connector
- female
- Contact material
- phosphor bronze
- Contact plating
- tinned
- Connector pinout layout
- 1x8
- Mechanical mounting
- for cable
- Electrical mounting
- spring clamp
- Type of connector
- pluggable terminal block
- Number of ways
- 8
- Locking system
- friction lock
