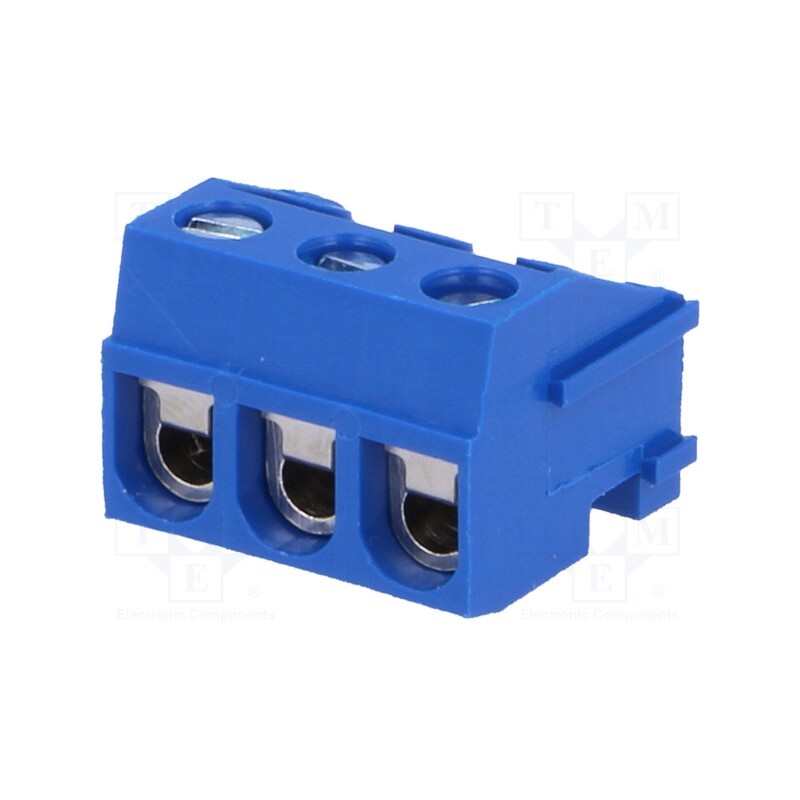

    10 pcs : DG332K-5.0-03P-12-00A(H) - Pluggable terminal block, Contacts ph: 5mm, ways: 3, angled 90°
    • 10 pcs : DG332K-5.0-03P-12-00A(H) - Pluggable terminal block, Contacts ph: 5mm, ways: 3, angled 90°

    10 pcs : DG332K-5.0-03P-12-00A(H) - Pluggable terminal block, Contacts ph: 5mm, ways: 3, angled 90°

    10(Allparts) DG332K503P12
    Pluggable terminal block, Contacts ph: 5mm, ways: 3, angled 90°

    Manufacturer part number: DG332K-5.0-03P-12-00A(H)

    Allparts-uk Symbol: DG332K5.0-3P12

    £24.83
    Delivery: 7-10 business days
    Quantity
    5 Items

    Description
    Pluggable terminal block, Contacts ph: 5mm, ways: 3, angled 90°

    Manufacturer part number: DG332K-5.0-03P-12-00A(H)

    Allparts-uk Symbol: DG332K5.0-3P12

    Product Details
    DEGSON ELECTRONICS
    10(Allparts) DG332K503P12
    DG332K-5.0-03P-12-00A(H)
    5 Items

    Data sheet

    Manufacturer
    DEGSON ELECTRONICS
    Flammability ratingECE R-118
    This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
    Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
    Rated volage U0/U where
    Operating temperature
    -30...120°C
    Conform to the norm
    CE UL
    Number of terminals
    3
    Spatial orientationInformation about relative position of each cable, terminals or PCB entry
    angled 90°
    Height
    11mm
    Body material
    PBT
    Connector
    plug
    Colour
    blue
    Current rating
    10A
    Wire size
    28AWG...16AWG
    Kind of connector
    female
    Contact material
    brass
    Contact plating
    tinned
    Depth
    13.4mm
    Connector pinout layout
    1x3
    Mechanical mounting
    for cable
    Connector variant
    with wire protector
    Electrical mounting
    pin header, screw terminal
    Wire cross-section
    1.5mm2
    Type of connector
    pluggable terminal block
    Number of ways
    3
    Connectors features
    assembling possibility
    Locking system
    friction lock
