Description

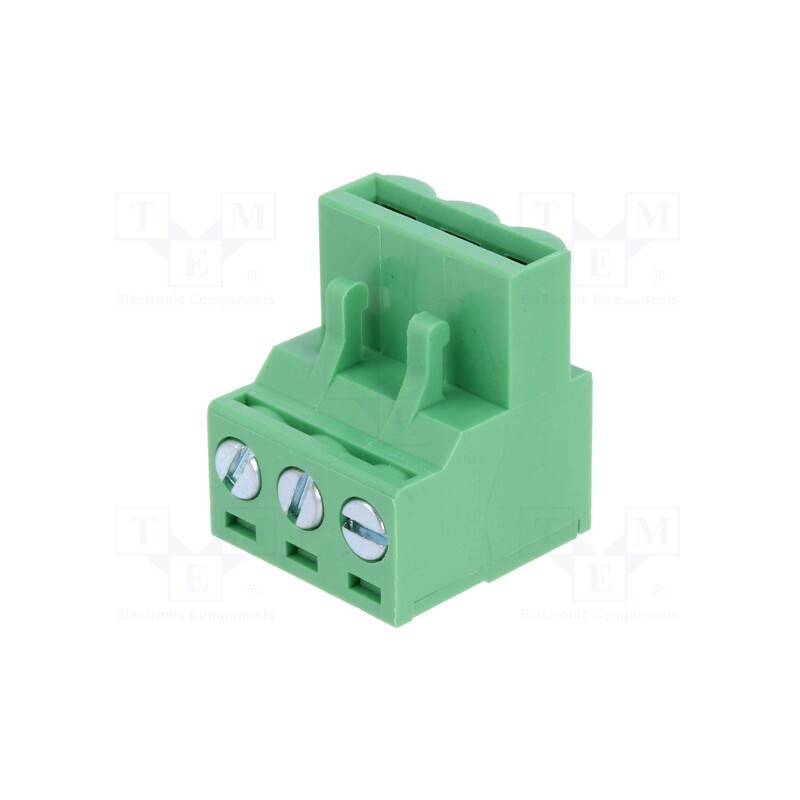

Pluggable terminal block, 5mm, ways: 3, straight, plug, female
Manufacturer part number: 2EDGP-5.0-03P-14-100AH
Allparts-uk Symbol: 2EDGP-5.0-03P14
Product Details
10(Allparts) 2EDGP5003P14
2EDGP-5.0-03P-14-100AH
5 Items
Data sheet
- Manufacturer
- DEGSON ELECTRONICS
- Flammability ratingECE R-118
- This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
- Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
- Rated volage U0/U where
- Operating temperature
- -40...105°C
- Conform to the norm
- CE UL
- Number of terminals
- 3
- Spatial orientationInformation about relative position of each cable, terminals or PCB entry
- straight
- Body material
- polyamide 66
- Connector
- plug
- Colour
- green
- Current rating
- 15A
- Wire size
- 28AWG...12AWG
- Kind of connector
- female
- Contact material
- phosphor bronze
- Contact plating
- tinned
- Connector pinout layout
- 1x3
- Mechanical mounting
- for cable
- Connector variant
- card edge
- Electrical mounting
- cage clamp, screw terminal
- Wire cross-section
- 2.5mm2
- Type of connector
- pluggable terminal block
- Number of ways
- 3
- Locking system
- latch
