Description

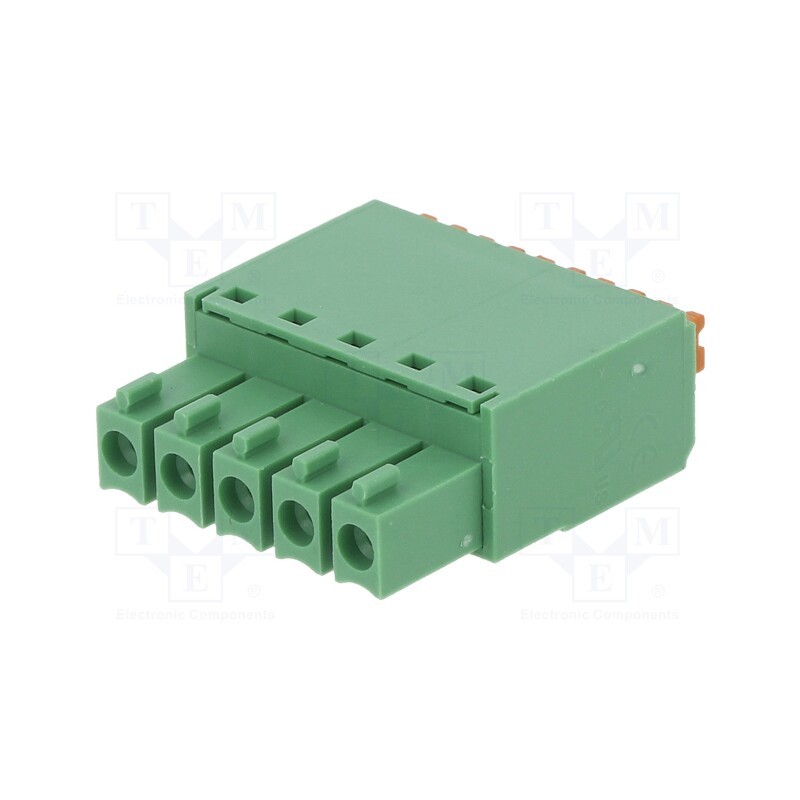

Pluggable terminal block, 3.5mm, ways: 5, straight, plug, female
Manufacturer part number: 15EDGKN-3.5-05P-14-1000AH
Allparts-uk Symbol: 15EDGKN-3.5-05P
Product Details
10(Allparts) 15EDGKN3505P
15EDGKN-3.5-05P-14-1000AH
5 Items
Data sheet
- Manufacturer
- DEGSON ELECTRONICS
- Flammability ratingECE R-118
- This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
- Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
- Rated volage U0/U where
- Operating temperature
- -40...105°C
- Conform to the norm
- CE UL VDE
- Number of terminals
- 5
- Spatial orientationInformation about relative position of each cable, terminals or PCB entry
- straight
- Body material
- polyamide 66
- Connector
- plug
- Colour
- green
- Current rating
- 8A
- Wire size
- 28AWG...16AWG
- Kind of connector
- female
- Contact material
- phosphor bronze
- Connector pinout layout
- 1x5
- Mechanical mounting
- for cable
- Connector variant
- with push button
- Electrical mounting
- spring clamp
- Wire cross-section
- 0.2...1mm2
- Type of connector
- pluggable terminal block
- Number of ways
- 5
- Locking system
- friction lock
