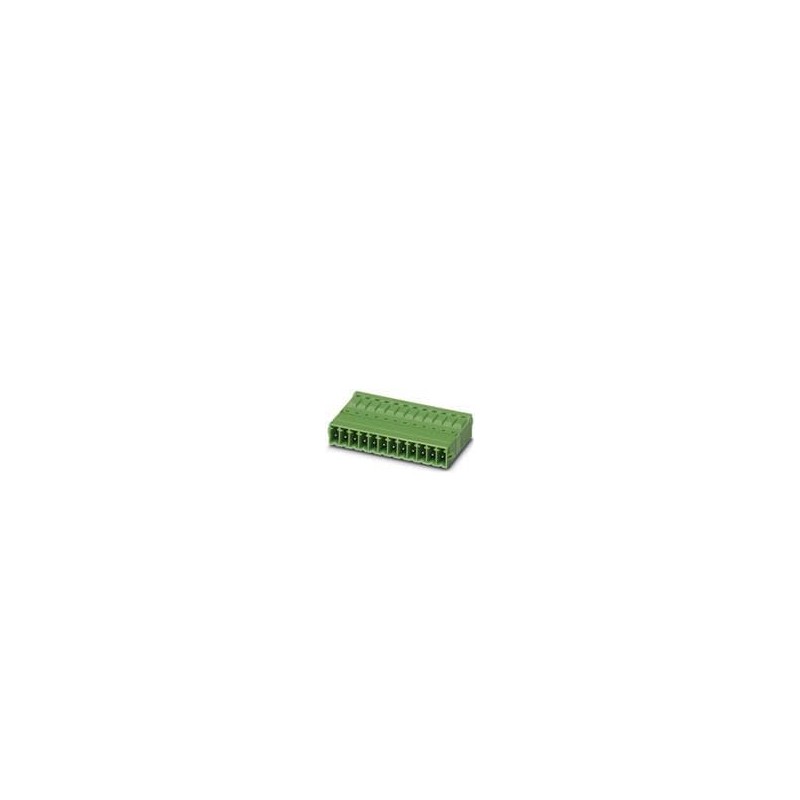

    1 pcs : 1844183 - Pluggable Terminal Blocks IFMC 1,510-ST-3,5-RN
    • 1 pcs : 1844183 - Pluggable Terminal Blocks IFMC 1,510-ST-3,5-RN

    1 pcs : 1844183 - Pluggable Terminal Blocks IFMC 1,510-ST-3,5-RN

    electronicparts-UK/M/651-1844183
    £26.43
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    IFMC Series Inverted PCB Connectors Phoenix Contact IFMC Series Inverted PCB Connectors offer three versions that require no tools. Self-locking side flanges provide safe latching or a push-in connection with an integrated spring lever that provides a fast connection. For stranded and solid conductors up to 1.5mm2, the Phoenix Contact IFMC Series are free-hanging connections, wire-to-board, in combination with the base strips in series IMC (V) 1,5. The extremely compact design boasts a height of just 7.8mm.
    Product Details
    PHOENIX CONTACT
    electronicparts-UK/M/651-1844183
    1844183
    10 Items

    Data sheet

    Manufacturer
    PHOENIX CONTACT
    Current rating
    8 A
    Contact material
    copper
    Contact plating
    Tin
    Number of positions
    10 Position
    Series
    IFMC
    Voltage Rating
    160 V
    Mounting Style
    Cable Mounts
    Housing Material
    Polyamide (PA)
    Product Type
    Pluggable Terminal Blocks
    Pitch
    3.5 mm
    Termination Style
    Spring Clamp
    Product Category
    Pluggable Terminal Blocks
    Flammability Rating
    UL 94 V-0
    RoHS
    Details
    Brand
    Phoenix Contact
    Product
    Plugs
    Factory Pack Quantity Factory Pack Quantity
    50
    Subcategory
    Terminal Blocks
    Tradename
    COMBICON Control
    Unit Weight
    6.160 g
    Wire Gauge Min
    24 AWG
    Wire Gauge Max
    16 AWG
