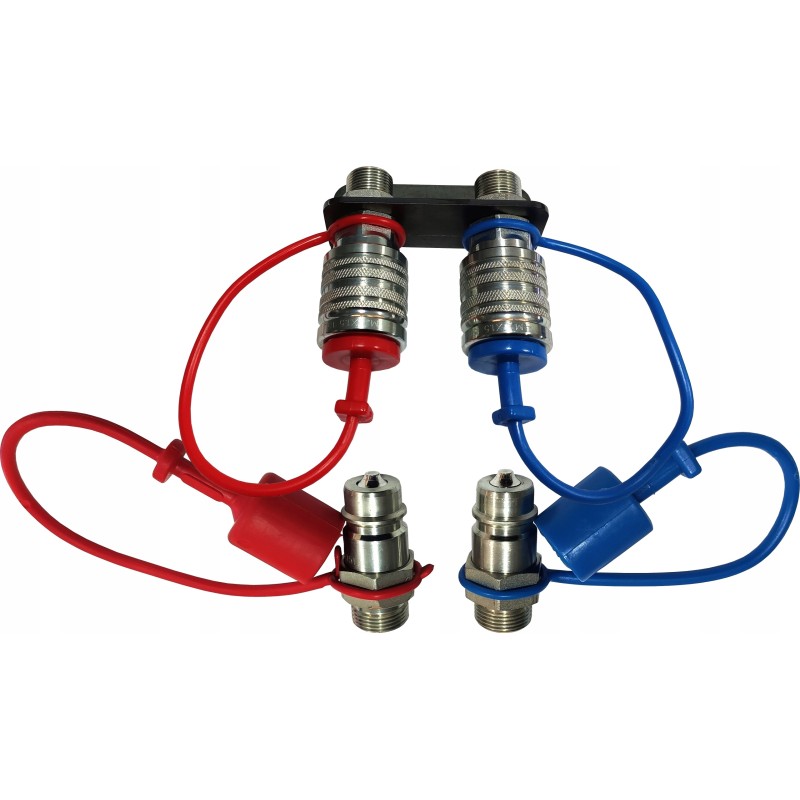

Set of quick connectors, Euro M18 plug sockets

SET OF BOARD (MOUNTING) AND QUICK CONNECTORS 2x SOCKETS AND 2x EURO M18 PLUGS WITH COVERS SKRAW-MET CODE: [8256] It is used when we want to improve the connection and disconnection of bulkhead quick connectors (sockets - plugs) in various tractor components.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

The mounting works perfectly in hydraulically powered machines and devices. The board is screwed on with two screws, e.g. in the TUR frame. Welding is also possible.

On our other auctions you will also find galvanized boards - double and quadruple with sets of quick connectors and covers. The composition includes: Raw board with two holes

2x LONG M18 socket

2x M18 plug

Red socket cover

Plug cover red

Blue socket cover

Blue plug cover

Sheet intended for mounting quick connectors for bulkhead sockets and plugs with metric threads: M14

M16

M18

M22

And inch threads: G3/8'

G1/2'

Technical Specification: HYDRAULIC QUICK CONNECTOR EURO THREAD PLUG 18x1.5 Application: Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Specification: Quick connector type: euro ISO standard

Quick connector type: plug

Thread type: short, external

Material: galvanized steel

HYDRAULIC QUICK CONNECTOR LONG SOCKET EURO THREAD 18x1.5 Application: Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without risk leaks and dirt getting into the system.

Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Specification: Quick connector type: euro ISO standard

Quick connector type: socket

Thread type: long, external

Material: galvanized steel

Weight: 0.30kg
