Piston pump 23012 sunfab 12l sap 012l n dl4 l35 s0s 000

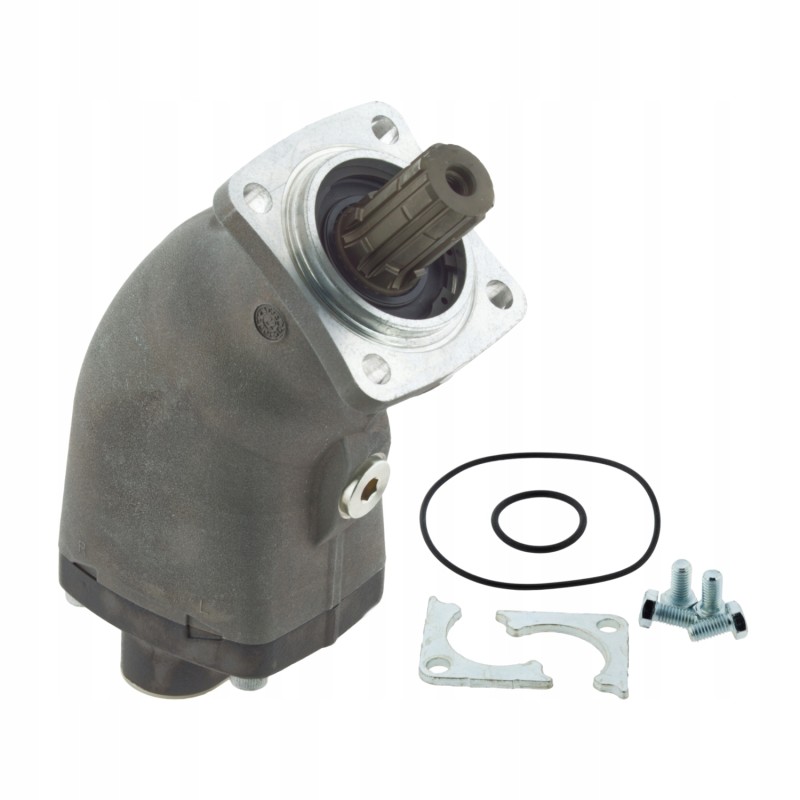

SUNFAB SAP 12L angular piston hydraulic pumpFull reference number: SAP-012L-N-DL4-L35-S-0S

Product number: 23012

The most popular piston pump on the market!

The SAP pump model (aluminum housing) successfully replaced the previous SCP model ( cast iron casing) which has been very popular on the market for many years.

It is a multi-piston 'broken' angular pump with a constant displacement.

Thanks to its compact structure, the SAP pump is ideal for mobile applications. It is used in many industries, including: forestry, construction and transport industries.

SAP pumps meet high market requirements regarding flow efficiency, pressure and smooth operation over the entire rotational speed range. Thanks to the use of the highest quality materials (including bearings, seals), a long service life is ensured. Thanks to the use of aluminum, the pumps are characterized by a corrosion-free housing, which additionally has very good heat dissipation capabilities, which results in less heat generation in the system.

The pumps can be mounted:

directly on the PTO

on the structure frame using an intermediate shaft.

Changing the directions of rotation pump is performed by turning the rear cover by 180°.

Parameters:

Unit capacity: 12.6 cm/rev

Max. constant speed: 2300 rpm

Max. instantaneous rotational speed: 3000 rpm

Max. working pressure: 400 bar

Max. torque: 6.7 Nm

Centering flange diameter: 80 mm

Mounting standard: ISO 7653-D

Shaft type: splined: 8x32x34.9 (DIN5462 - ISO 14)

Direction of rotation: left

Pressure connection: 3/4' BSP

Suction connection: Ø45 (dedicated connector available in another auction)
