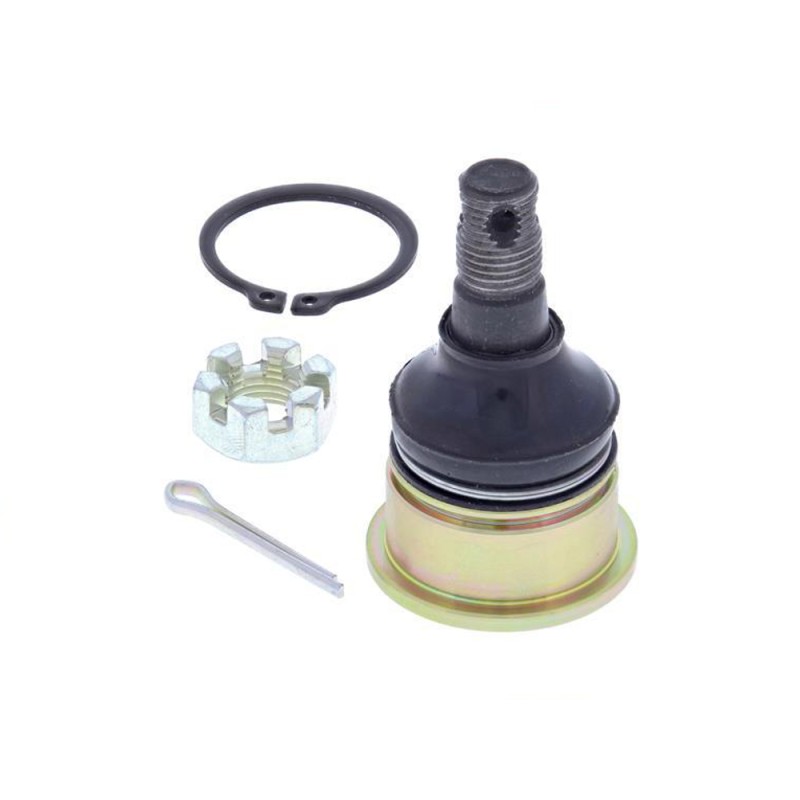

Swingarm pin atv quad yamaha grizzly yfm 550

SWING ARM PIN. Helpful information:

diameter at the point of pressing into the steering knuckle 32.5 mm

height from the flange to the protection 12 mm (height of pressing into the knuckle)

thread M12x1.25

High-quality suspension pin from All Balls.

The American company All Balls produces, manufactures and distributes a wide range of bearings, repair kits for wheel bearings and swing arm, as well as other components mainly for enduro/cross motorcycles and ATVs.

42-1038

Application:

Lower pin: Yamaha KODIAK 700 4WD 16-17, KODIAK 700 EPS 4WD 16-17, YFM550 Grizzly 09-14, YFM550 Grizzly EPS 09-14, YFM700 Grizzly 07-16, YFM700 Grizzly EPS 08-17 and more.

Top pin: Yamaha KODIAK 700 4WD 16-17, KODIAK 700 EPS 4WD 16-17, YFM550 Grizzly 13-14, YFM550 Grizzly EPS 13-14, YFM700 Grizzly 13-16, YFM700 Grizzly EPS 13-17 and more.
