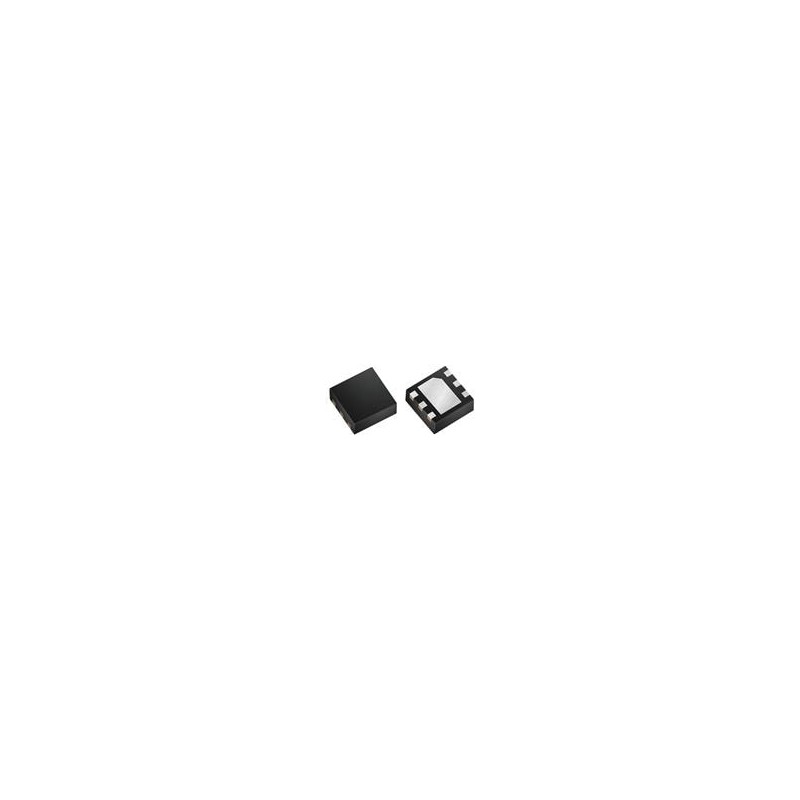

1 pcs : MADP-011028-14150T - PIN Diodes .5-12GHz Ls.4nH 100W Pk
    • 1 pcs : MADP-011028-14150T - PIN Diodes .5-12GHz Ls.4nH 100W Pk

    1 pcs : MADP-011028-14150T - PIN Diodes .5-12GHz Ls.4nH 100W Pk

    electronicparts-UK/M/937-MADP01102814150T
    MACOM
    £12.42
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    MADP-01102x Shunt PIN Diodes MACOM MADP-01102x Shunt PIN Diodes offer lead-free 1.5mm x 1.2mm DFN surface-mount plastic packaged PIN diodes that provide both low and high signal frequency operation from 50MHz to 12GHz. The higher breakdown voltage and lower thermal resistance of the PIN diode provides peak power handling in excess of 100W. MACOM MADP-01102x Shunt PIN Diodes are ideally suitable for usage in higher incident power switches, phase shifters, attenuators, and limiter microwave circuits over a broad frequency where higher performance surface mount diode assemblies are required.
    Product Details
    MACOM
    electronicparts-UK/M/937-MADP01102814150T
    MADP-011028-14150T
    10 Items

    Data sheet

    Manufacturer
    MACOM
    Series
    MADP
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 65 C
    Mounting Style
    SMD/SMT
    Product Type
    PIN Diodes
    Termination Style
    Solder
    Package/Case
    DFN-6
    Product Category
    PIN Diodes
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    MACOM
    Factory Pack Quantity Factory Pack Quantity
    3000
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    21.100 mg
    Pd - Power Dissipation
    4.3 W
    Vr - Reverse Voltage
    200 V
    If - Forward Current
    250 mA
    Vf - Forward Voltage
    900 mV
