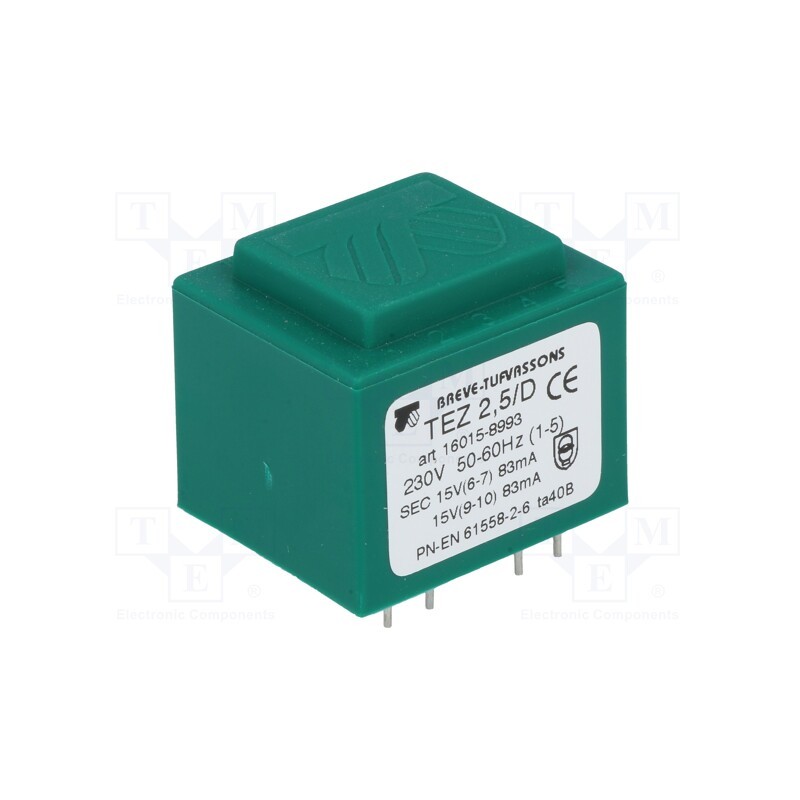

1 pcs x BREVE TUFVASSONS - TEZ2.5/D230/15-15V - Transformer: encapsulated, 2.5VA, 230VAC, 15V, 15V, 83.3mA, 83.3mA
    • 1 pcs x BREVE TUFVASSONS - TEZ2.5/D230/15-15V - Transformer: encapsulated, 2.5VA, 230VAC, 15V, 15V, 83.3mA, 83.3mA

    1 pcs x BREVE TUFVASSONS - TEZ2.5/D230/15-15V - Transformer: encapsulated, 2.5VA, 230VAC, 15V, 15V, 83.3mA, 83.3mA

    1 x BREVE TUFVASSONS - TEZ2.5/D230/15-15V
    Transformer: encapsulated, 2.5VA, 230VAC, 15V, 15V, 83.3mA, 83.3mA

    Manufacturer part number: TEZ2.5/D230/15-15V

    electronicparts-UK Symbol: TEZ2.5/D/15-15V

    £11.35
    Delivery: 7-10 business days
    Quantity
    157 Items

    Product Details
    1 x BREVE TUFVASSONS - TEZ2.5/D230/15-15V
    TEZ2.5/D230/15-15V
    157 Items

    Data sheet

    Manufacturer
    BREVE TUFVASSONS
    Mounting
    PCB
    Conform to the norm
    PN EN 61558-1:2000 PN EN 61558-2-1:2000 PN EN 61558-2-6:2000
    A dimension
    28mm
    B dimension
    33mm
    C dimension
    27mm
    IP rating
    IP00
    Power
    2.5VA
    Thermal class
    Ta40B
    Type of transformer
    encapsulated
    Primary voltage
    230V AC
    Secondary voltage 1
    15V
    Secondary voltage 2
    15V
    Electrical insulation strength
    4kV/60s
    Secondary winding current 1
    83.3mA
    Secondary winding terminals
    06/07/2009 13:00:00
    Primary winding terminals
    01/05/2024
