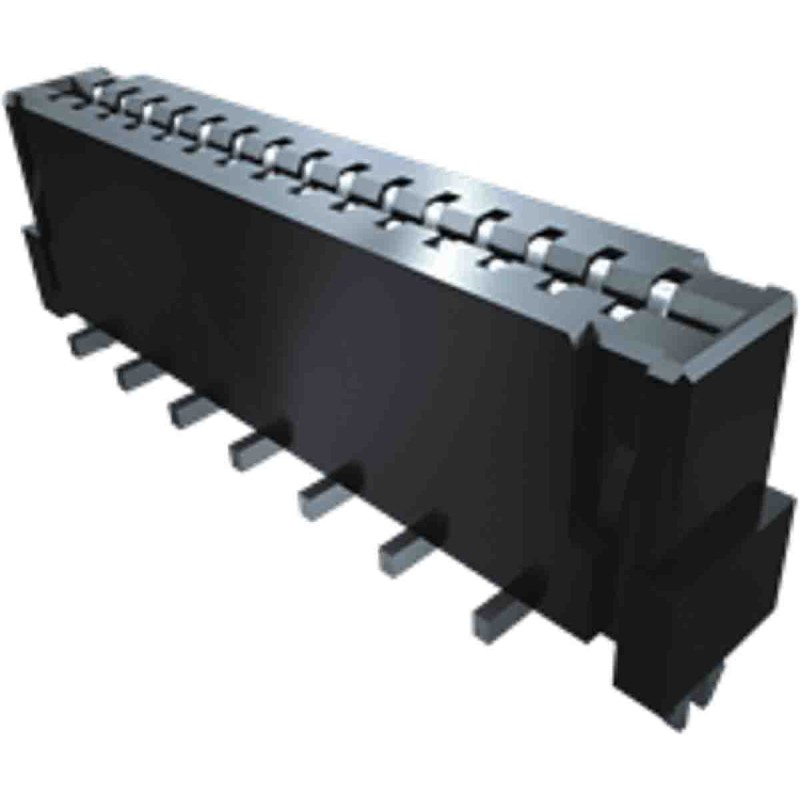

    10 pcs - FC1-15-02-T-WT Samtec FC1 Series Straight Surface Mount PCB Socket, 15-Contact, 1-Row, 1mm Pitch, Solder Termination
    • 10 pcs - FC1-15-02-T-WT Samtec FC1 Series Straight Surface Mount PCB Socket, 15-Contact, 1-Row, 1mm Pitch, Solder Termination

    10 pcs - FC1-15-02-T-WT Samtec FC1 Series Straight Surface Mount PCB Socket, 15-Contact, 1-Row, 1mm Pitch, Solder Termination

    10(Allparts)1969982
    Samtec
    10 pcs - FC1-15-02-T-WT Samtec FC1 Series Straight Surface Mount PCB Socket, 15-Contact, 1-Row, 1mm Pitch, Solder Termination
    £56.80
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    The Samtec FC1-15-02-T-WT is a FC1 series flat flexible socket strip. This socket strip has low Insertion force contacts available. Also it is RoHS compliant.Insulator material is liquid crystal polymerContact material is phosphor bronzeOperating temperature range is from 55°C to +105°C
    Product Details
    Samtec
    10(Allparts)1969982
    FC1-15-02-T-WT
    10 Items

    Data sheet

    Manufacturer
    Samtec
    A-Supplier
    Allparts-UK/15/R-10
    Series
    FC1
    Mounting Type
    Surface Mount
    Type
    Board to Board
    Number of Contacts
    15
    Termination Method
    Solder
    Body Orientation
    Straight
