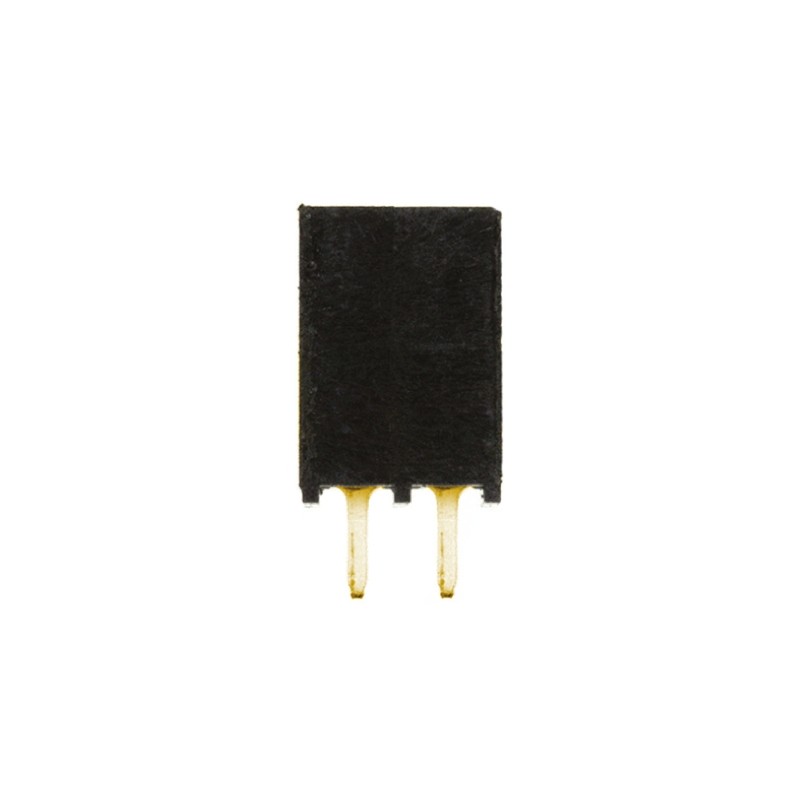

10 pcs - SSQ-102-01-G-S Samtec SSQ Series Straight Through Hole Mount PCB Socket, 2-Contact, 1-Row, 2.54mm Pitch, Solder Termina

Through Hole 2.54mm Square Post Socket Strips with Square Tail - SSQ SeriesSSQ series PCB through hole board-to-board square post, square tailed socket strips with a 2.54mm pitch, a black, liquid crystal polymer insulator and phosphor bronze Tiger Buy contacts with 0.51μm gold plating on the contact and gold flash on the tail. These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight or right angle body orientation and an option of post lengths. The operating temperature range for these SSQ series PCB through hole sockets is -55 to 125°C.SSQ PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.SSQ PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.NoteThese SSQ series PCB through hole board-to-board square post sockets mate with the following:TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.Samtec PCB Socket, 6.3A Current Rating Per Pin, 2.64mm Solder Pin Length - SSQ Series - SSQ-102-01-G-SKeen to add extra connectivity to your board-mounted setup? Fit this Samtec PCB socket. Space for two connections lets you close multiple circuits in one go. Thanks to the component's phosphor bronze pins, it efficiently carries power through its system to keep its process running hiccup-free. The connector slots together with a header (208-6550), mating easily without the need for special tools for easy PCB stacking. As the socket is designed for through-hole mounting, you can install it securely to a board in a flash.Features & Benefits• Each pin handles up to 6.3A of current to tackle everyday loads• Gold-plated contacts provide effective corrosion resistance in damp environments• Service life of 100 mating cycles for long-lasting connectivity• Insulating liquid crystal polymer casing protects against hazardous electrical currentApplications• Packaging industry• Data centres• Telecommunications• Maritime equipmentHow does stacking my circuit boards affect my system?By stacking your PCBs, you minimise electrical noise and shut out interference from outside sources to keep signals reliably flowing between your components.Can I solder this socket to my board's surface?Yes, this header supports direct soldering to PCBs for versatile installation.2.54mm Board to Board and Wire to Board - Samtec
