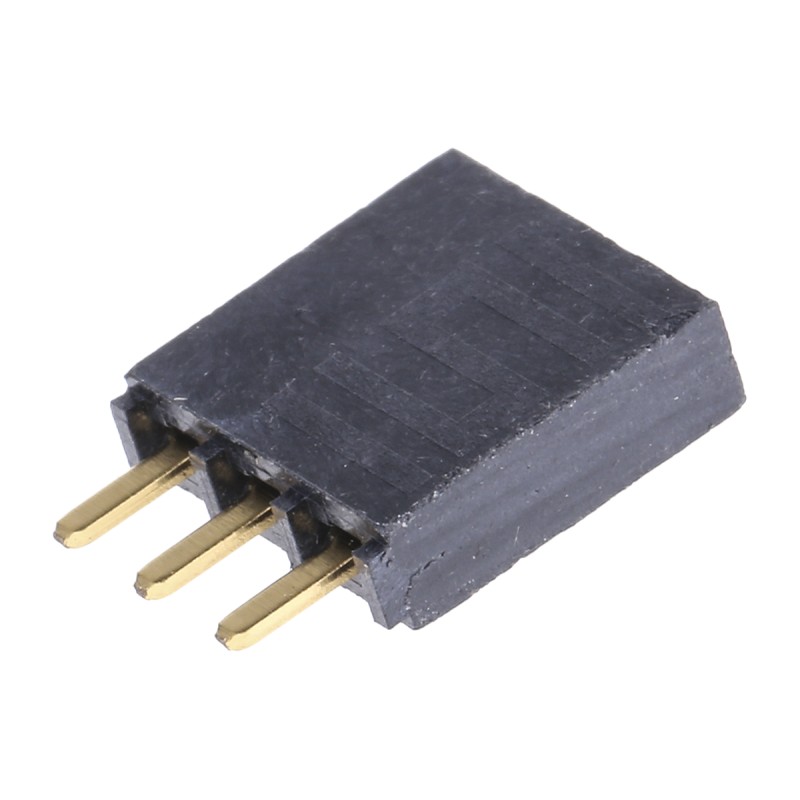

10 pcs - SSW-103-01-G-S Samtec SSW Series Straight Through Hole Mount PCB Socket, 3-Contact, 1-Row, 2.54mm Pitch, Solder Termina

Through Hole 2.54mm Square Post Socket Strips with Solder Tail - SSW SeriesSSW series PCB through hole board-to-board square post, solder tailed socket strips with a 2.54mm pitch and a black, liquid crystal polymer insulator. The Tiger Buy contacts of these 2.54mm PCB through hole sockets are made from phosphor bronze with 0.51μm gold plating on the contact and gold flash on the tail (apart from stock numbers 765-5739 and 765-5786 which have matte tin contacts). These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight and right angle and an option of post lengths. The operating temperature range for these SSW series PCB through hole sockets is -55 to 125°C for gold plated versions and -55 to 105°C for matte tin versions.SSW PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.SSW PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.NoteThese SSW series PCB through hole board-to-board square post sockets mate with the following:TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.Samtec PCB Socket, 3 Contacts, Phosphor Bronze Contact Material - SSW Series - SSW-103-01-G-SMake smart connections in your panel with this PCB socket from Samtec. By inserting the male end of one connector into the contact points, you can ensure reliable power and signal transmissions in your system. This piece of kit features three contacts, so you can make multiple links for versatility. You can mount this socket in no time by soldering the pins to through-holes on your board. The unit's wide operating temperature range between -55°C and +125°C means it keeps its cool when the heat is on.Features & Benefits• Liquid crystal polymer housing offers insulation protection to prevent electric shock• Compact pitch size of 2.54mm for use on boards with limited space• Current rating of 6.9A per pin for use in medium-power systemsApplications• Automotive electronics• Measuring instruments• Data centres• Household appliancesHow durable is this socket?This socket withstands up to 100 mating cycles, so you can insert and remove the connectors multiple times with minimal risk of wear.What are the contacts of this socket made from?The contacts of this socket are made from gold-plated phosphor bronze that delivers high electrical conductivity and resistance to corrosion for a strong electrical connection.2.54mm Board to Board and Wire to Board - Samtec
