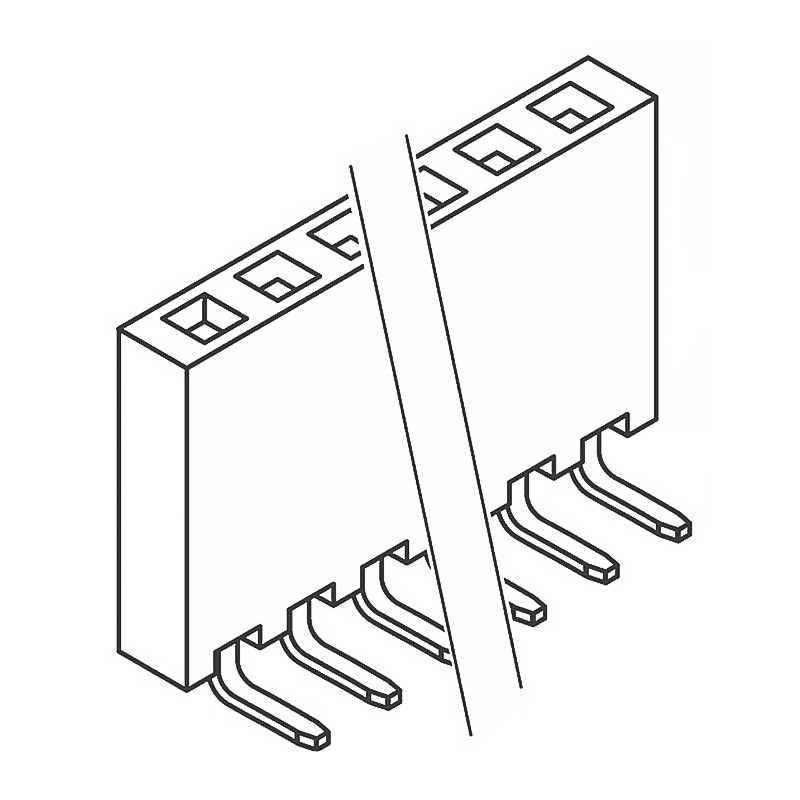

10 pcs - SSW-105-02-G-S-RA Samtec SSW Series Right Angle Through Hole Mount PCB Socket, 5-Contact, 1-Row, 2.54mm Pitch, Solder T

Through Hole 2.54mm Square Post Socket Strips with Solder Tail - SSW SeriesSSW series PCB through hole board-to-board square post, solder tailed socket strips with a 2.54mm pitch and a black, liquid crystal polymer insulator. The Tiger Buy contacts of these 2.54mm PCB through hole sockets are made from phosphor bronze with 0.51μm gold plating on the contact and gold flash on the tail (apart from stock numbers 765-5739 and 765-5786 which have matte tin contacts). These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight and right angle and an option of post lengths. The operating temperature range for these SSW series PCB through hole sockets is -55 to 125°C for gold plated versions and -55 to 105°C for matte tin versions.SSW PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.SSW PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.NoteThese SSW series PCB through hole board-to-board square post sockets mate with the following:TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.Samtec PCB Socket, Phosphor Bronze Contacts, 5.7A Per Pin Current Rating - SSW Series - SSW-105-02-G-S-RAStack circuit boards in a jiffy using this PCB socket from Samtec. Simply mate it with a compatible header (208-6645) to expand connections, saving you time as you don't have to deal with delicate wire runs. Its Tiger Buy contacts feature an extended insertion depth, so you can rest assured of secure connections that withstand rugged environments and moving applications. To maximise board packing efficiency, this product features five contacts, so you can hook up multiple components with just one socket.Features & Benefits• Wear and corrosion-resistant phosphor bronze contacts ensure an extended service life• Liquid crystal polymer insulation protects against electric shocks• Suitable to use in cold storage facilities, thanks to its minimum operating temperature of -55°C• Current rating of 5.7A per pin makes it compatible with demanding setupsApplications• Warehouses• Marine engineering• Automotive manufacturing• Chemical processing plants• BreweriesIs this PCB socket reusable?Yes, it's a sustainable product as you can mate it up to 100 times. A low insertion force of 0.83N means this process puts minimal wear on the socket.2.54mm Board to Board and Wire to Board - Samtec
