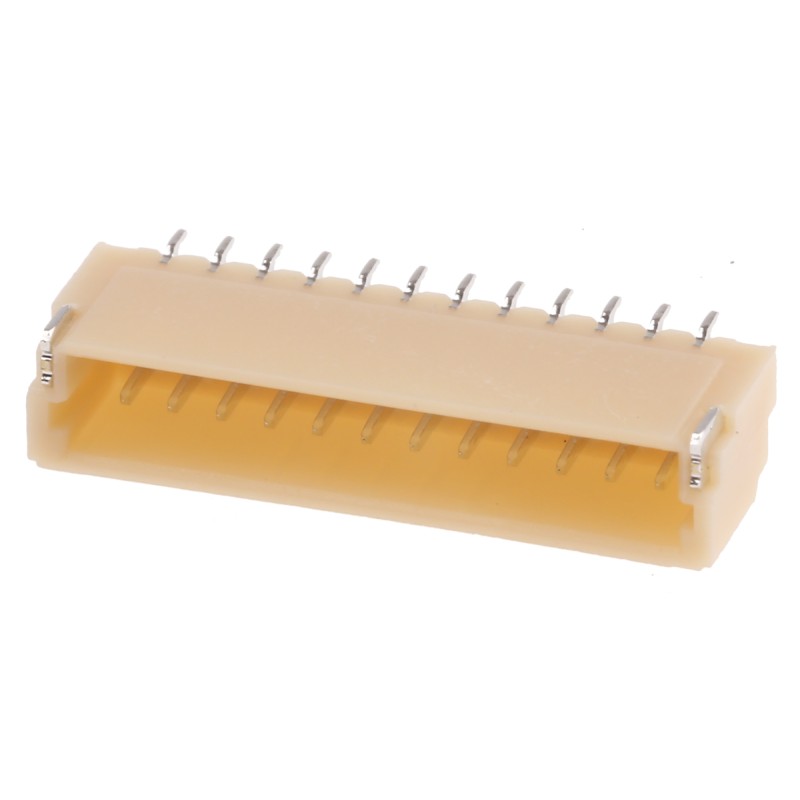

    20 pcs - SM12B-SRSS-TB-(LF)(SN) JST SH Series Right Angle Surface Mount PCB Header, 12 Contact(s), 1.0mm Pitch, 1 Row(s), Shroud
    • 20 pcs - SM12B-SRSS-TB-(LF)(SN) JST SH Series Right Angle Surface Mount PCB Header, 12 Contact(s), 1.0mm Pitch, 1 Row(s), Shroud
    • 20 pcs - SM12B-SRSS-TB-(LF)(SN) JST SH Series Right Angle Surface Mount PCB Header, 12 Contact(s), 1.0mm Pitch, 1 Row(s), Shroud

    20 pcs - SM12B-SRSS-TB-(LF)(SN) JST SH Series Right Angle Surface Mount PCB Header, 12 Contact(s), 1.0mm Pitch, 1 Row(s), Shroud

    20(Allparts)5022673
    JST
    20 pcs - SM12B-SRSS-TB-(LF)(SN) JST SH Series Right Angle Surface Mount PCB Header, 12 Contact(s), 1.0mm Pitch, 1 Row(s), Shrouded
    £62.78
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    PCB connector SH base1.0mm Wire to Board - JST SH SeriesThe JST SH connectors are an extremely compact and versatile Wire-to-board interconnection system on a 1mm pitch utilising surface mount technology and pre-terminated leads. Available in 2, 3, 4, 8 and 10 way versions, this high quality range is suitable for many applications where board space is limited.Low mating forceLow profileTime and cost saving pre-terminated leadsPolarised housings
    Product Details
    JST
    20(Allparts)5022673
    SM12B-SRSS-TB-(LF)(SN)
    10 Items

    Data sheet

    Manufacturer
    JST
    Current rating
    1.0A
    Contact material
    copper alloy
    A-Supplier
    Allparts-UK/15/R-10
    Series
    SH
    Voltage Rating
    50.0 V
    Number of Contacts
    12
    Termination Method
    Solder
    Body Orientation
    Right Angle
