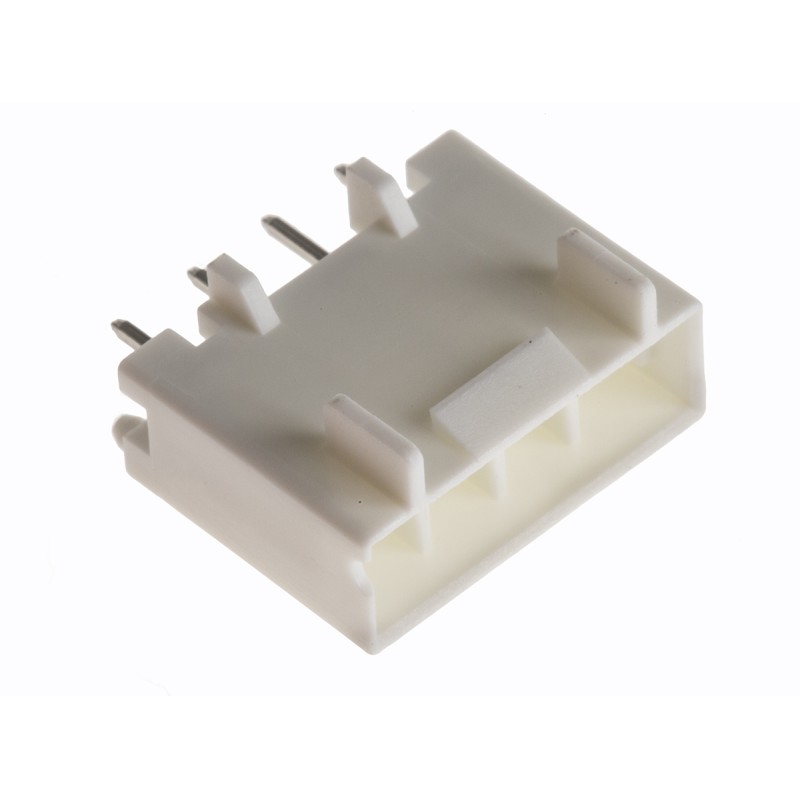

50 pcs - DF33C-4P-3.3DSA(24) Hirose DF33C Series Straight Through Hole PCB Header, 4 Contact(s), 3.3mm Pitch, 1 Row(s), Shrouded

Hirose EnerBee DF33C Series 3.3 mm PCB Header ConnectorsThese DF33C Series 3.3 mm wire to board small power supply header connectors are the smallest connector in the EnerBee range. The DF33C series has a maximum current capacity of 5A when used with 20 AWG wire. The housings of these DF33C headers feature a robust positive locking mechanism which is designed to prevent accidental unmating caused by drops or external shocks. When mated, a clear, tactile click is produced which confirms the connector is fully engaged guaranteeing a complete electrical and mechanical connection. This positive locking mechanism also meets the various requirements of industrial power supply and power sources. The contacts of these DF33C connectors are are separated by walls inside the housing enabling them to be independent of one another and preventing short circuits. These DF33C 3.3 mm header connectors feature guide posts that help with accurate placement and orientation on the PCB. The housing material of the DF33C headers contains a glass filled resin to decrease thermal shrinkage and prevent solder cracking. These DF33C header connectors accept resin sealing up to 6.5 mm high from the board surface without any effect on their performance. This sealing offers protection against dust and moisture penetration.Features and BenefitsCompact design with high-power capability of 5ASecure positive locking mechanism with tactile clickIndividually ’boxed’ contacts to prevent short circuitsSupports resin sealing up to 6.5 mm for protection against dust and moistureGlass filled resin in housing material to prevent solder crackingMeet 1.5mm creepage distance as stipulated by the Electrical Appliance and Material Safety ActGlow Wire compliantApplicationsThese Enerbee DF33C connectors are widely used as a compact connector for internal power supplies. Applications include: LED lighting, office equipment, medical devices, robotics, home appliances, industrial controllers, smart meters, IT home appliances as well as many othersThe EnerBee BrandThe EnerBee name represents the concept of high-end, superior performance in a compact size like the small yet busy bee! The EnerBee range of connectors provide technically advanced connectivity solutions for a wide range of applications and are able to work with high current and high tension devices. The compact size allows space saving to be maximised and offers an alternative to other bulky parts that are on the market. The EnerBee's built-in lock mechanism replaces terminal locks improving both assembly quality and work efficiency.StandardsGlow Wire Compliance (Compliant with IEC 60695-2-11)Hirose EnerBee DF33C 3.3mm Series
