    20 pcs - DF12B(3.0)-50DP-0.5V(86) Hirose DF12 Series Straight Surface Mount PCB Header, 50 Contact(s), 0.5mm Pitch, 2 Row(s), Sh
    • 20 pcs - DF12B(3.0)-50DP-0.5V(86) Hirose DF12 Series Straight Surface Mount PCB Header, 50 Contact(s), 0.5mm Pitch, 2 Row(s), Sh

    20 pcs - DF12B(3.0)-50DP-0.5V(86) Hirose DF12 Series Straight Surface Mount PCB Header, 50 Contact(s), 0.5mm Pitch, 2 Row(s), Sh

    20(Allparts)7793308P
    HIROSE

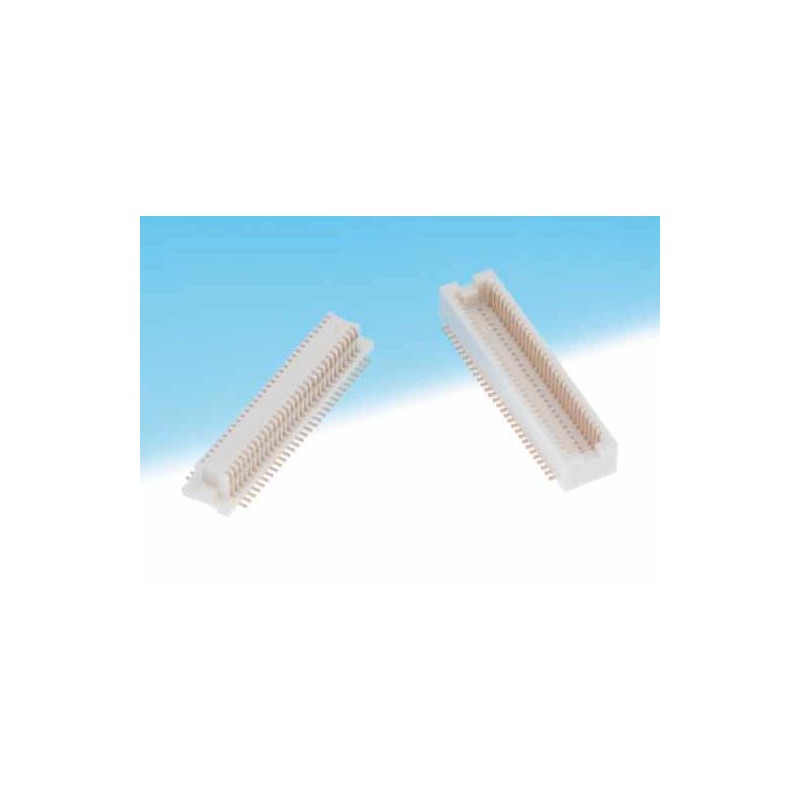

    20 pcs - DF12B(3.0)-50DP-0.5V(86) Hirose DF12 Series Straight Surface Mount PCB Header, 50 Contact(s), 0.5mm Pitch, 2 Row(s), Shrouded
    £40.46
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    0.5mm Hirose SMT Board to Board Header with Fitting - DF12B SeriesDF12 series straight, SMT mounting, ultra-miniature Board to Board, double row Header connectors with a 0.5mm contact pitch available with 3.0, 3.5, 4.0 or 5.0 mm stacking heights. These 0.5mm PCB mount double row Board to Board Header connectors have a UL94V-0 polyamide body and gold plated contacts. DF12 SMT Board to Board Header connectors with part numbers: DF12Bxx - xxxx--xxxx have metal fittings for solder retention.Applications:• Mobile phone• LCD• Note PCNoteFor mating DF12A receptacles see stock number 779-3276 typical.For mating DF12B receptacles see stock number 779-3298 typical.For mating DF12C receptacles see stock number 779-3364 typical.
    Product Details
    HIROSE
    20(Allparts)7793308P
    DF12B(3.0)-50DP-0.5V(86)
    10 Items

    Data sheet

    Manufacturer
    HIROSE
    Current rating
    300.0mA
    Contact material
    copper alloy
    A-Supplier
    Allparts-UK/15/R-10
    Series
    DF12
    Voltage Rating
    50.0 V
    Number of Contacts
    50
    Termination Method
    Solder
    Body Orientation
    Straight
